Ultrasonic Sensors
M12 Ultra sonic sensor with analog output.
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
Style Housing - Ø 12 mm
Analog output - Analog, current (4-20 mA) or Voltage (0-10V)
Connection - Connector, M12x1-Male, 4-pin
Housing material - Nickel-plated brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 20…250 mm or 40…350mm
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
M30 Pressure rated Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
Style Housing - Ø 47 mm
Process connection - G 1"
Analog output - Analog current (4-20mA)/Voltage (0-10V) or PNP
Switching output - PNP NO/NC
Connection - Connector, M12x1-Male, 5-pin
Housing material - 1.4571 stainless steel, PBT, TPU
Material sensing surface - PTFE
Range - 85…1500 mm, 200...5000 mm
Switching frequency - 9 Hz
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Pressure rating max. - 6 bar
Approval/Conformity - cULus, CE, WEEE, UKCA
Microsonic - LinkControl adapter LCA-2 , programmer for easy USB to sensor programming via the Link Control software.
Microsonic website and software download click here
HIGHLIGHTS
Three-digit digital display for the display of measured distance values in mm or cm
TeachBox with four-button operation for programming of the sensor without a PC
LinkCopy function for copying the sensor settings from one sensor to another without a PC
Uniform microsonic teach-in for all microsonic sensors to keep easy things easy
BASICS
Handy adapter for the programming of ultrasonic sensors
USB interface for connection to a PC
T plug to insert the adapter between the connector cable and the sensor
LinkControl software free download of the current version on the Internet
Backwards-compatible so sensors that have been in the field for a long time can still be programmed
Future-proof since the LinkControl adapter will also support future generations of sensors
M18 Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
BUS M18M1-GPXI-03/025-S92G-511
Style Housing - Ø 18 mm
Interface - IO-Link 1.1
Switching output - Analog 4-20mA or 0-10V or PNP/NPN
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Max Range - 250mm, 350mm, 600mm, 1300mm
Switching frequency - 25 Hz
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA

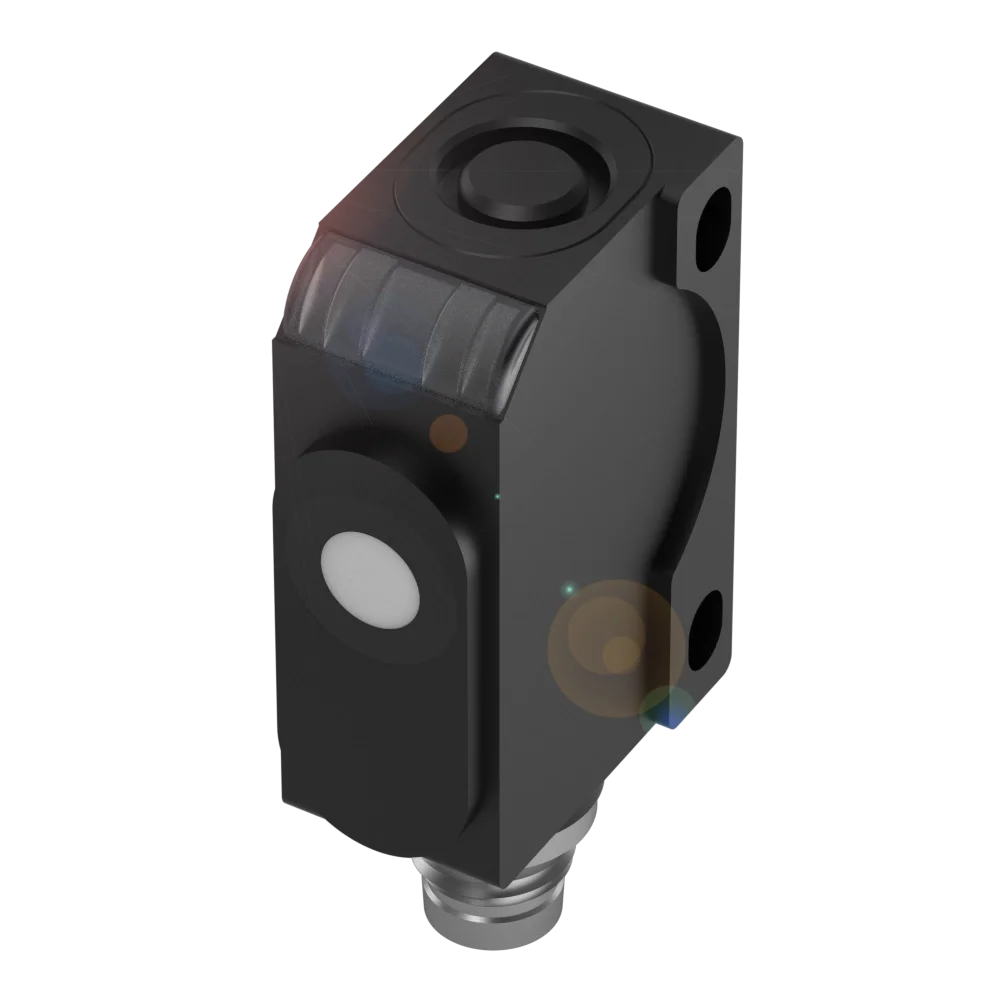

Block type Ultra sonic sensor with analog output.
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. Please call to confirm
Style Housing - block style
Switching output - Analog 4-20mA or 0-10V, & NPN or PNP options available
Connection - Connector, M8x1-Male, 4-pin
Housing material - ABS
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 20-250 mm, 50-350mm, 120-1000mm
Switching frequency - 25 Hz
Operating voltage Ub - 20...30 VDC
Ambient temperature - -25...70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 %FS
Approval/Conformity :CE, WEEE, UKCA, cULus
Ultrasonic Sensors accessories
M18 Ultra sonic sensor with angled head. Analog or Digital output version available
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
BUS W18M1-GPXI-02/015-S92G-511
Style Housing - Ø 18 mm
Interface - IO-Link 1.1
Switching output - Analog current (4-20mA) or Voltage (0-10V) or NPN/PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 25…250 mm, 30...350 mm, 65...600 mm, 120...1300 mm
Switching frequency - 25 Hz
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
Square style Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. Please call to confirm
Style Housing - Block style
Interface - IO-Link 1.0
Switching output - Analog 4-20mA/0-10V or NPN/PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 350…5000 mm, 600…8000mm
Switching frequency - 4 Hz
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
M30 Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
Style Housing - Ø 30 mm
Analog output - Analog 4-20mA/0-10V or NPN or PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass or Stainless steel
Material sensing surface - PU foam/Epoxy resin/Glass
Max range - 30…350mm, 65…600mm, 200…2000mm, 350…5000mm, 600…8000mm
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
