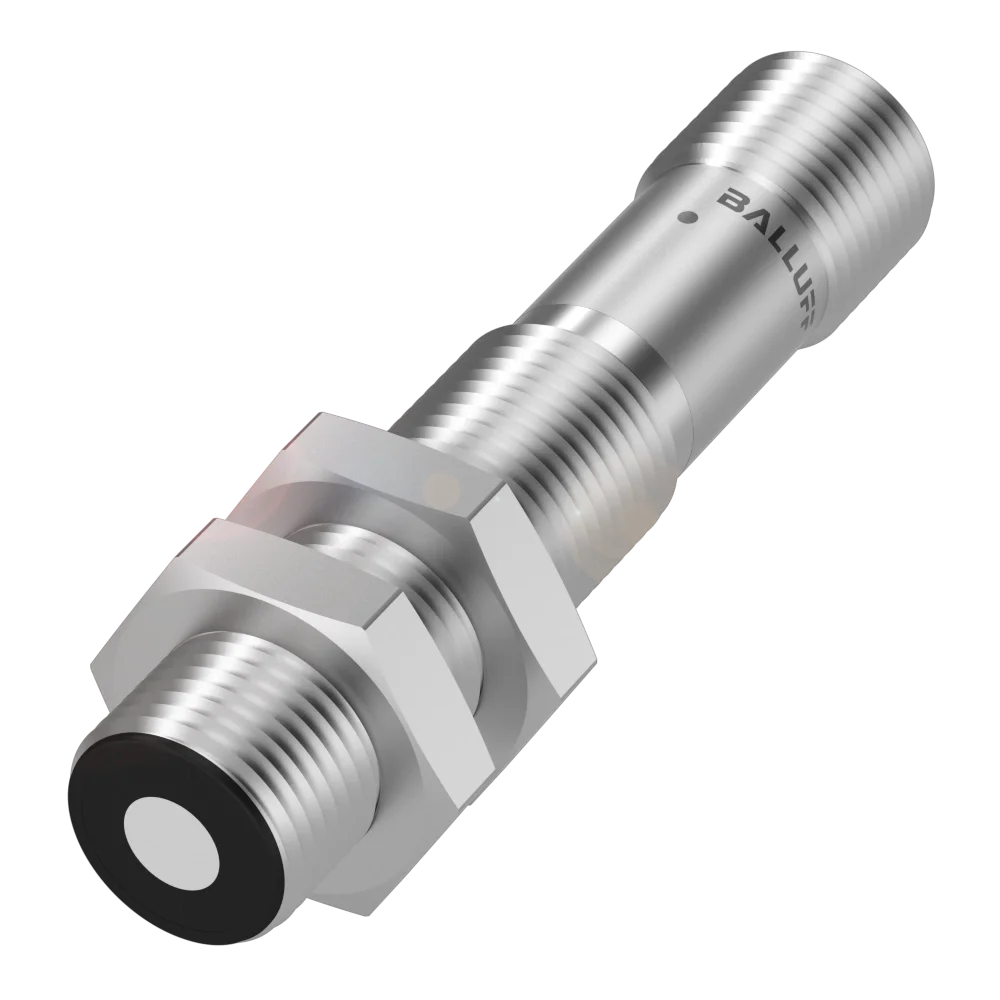

M12 Ultra sonic sensor with analog output.
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
Style Housing - Ø 12 mm
Analog output - Analog, current (4-20 mA) or Voltage (0-10V)
Connection - Connector, M12x1-Male, 4-pin
Housing material - Nickel-plated brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 20…250 mm or 40…350mm
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
