Single-ended cordsets
M8 - 3 Pin- 3 Core
Balluff - BCC02M9 - M8 - 3 pin single ended cordset straight 5 meter
BCC M313-0000-10-001-PX0334-050
Connection - M8x1-Female, straight, 3-pin, A-coded
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 3
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity
CE
cULus
UKCA
WEEE
M12 - 5 Pin- 4 Core
M12x1-Female, straight, 5-pin 4C, A-coded - PUR black, 5 m, drag chain compatible
BCC M415-0000-1A-003-PX0434-050
Connection - M12x1-Female, straight, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
5 meter
M12 - 5 Pin- 4 Core with LED indicators
M12x1-Female, straight, 5-pin 4C, A-coded - PUR black, 5 m, drag chain compatible, with LED indicators.
BCC M415-0000-1A-008-PX0434-050
Connection - M12x1-Female, straight, 5-pin, A-coded
Power indicator - Green LED
Function indicator (Pin 4) - LED yellow
Switching output - PNP NO/NC antivalent
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 30 VDC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
5 meter
M12 - 5 Pin- 5 Core
M12x1-Female, straight, 5-pin 5C, A-coded - PUR black, 5 m, drag chain compatible
BCC M415-0000-1A-017-PX0534-050
Connection - M12x1-Female, straight, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 5
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE

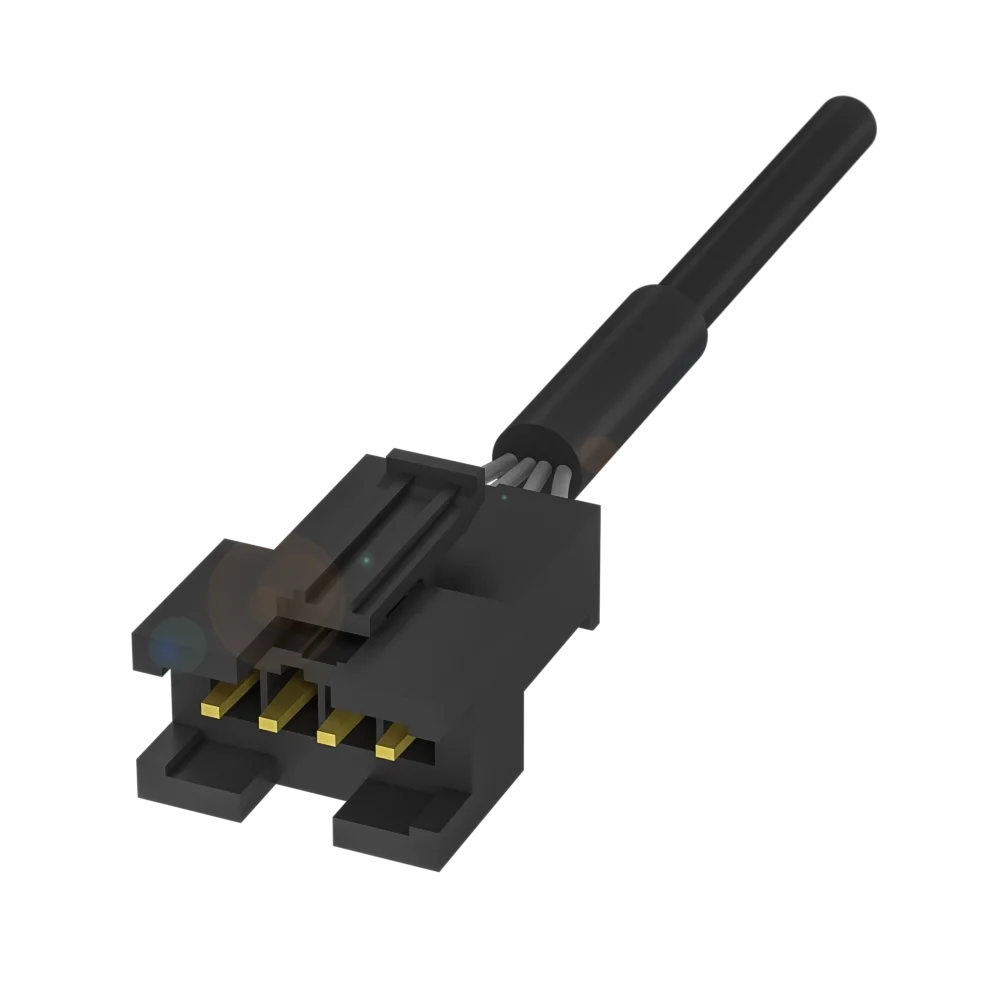

Plug in
BCC Z040-0000-E0-390-VX0410-020
Connection - Plug-in terminals, 4-pin
Cable - black, 2 m
Number of conductors - 4
Conductor cross-section - 0.10 mm²
Cable temperature, fixed routing - -30...80 °C
Operating voltage Ub - 30 VDC
Rated current (40 °C) - 3.0 A
Approval/Conformity
CE
UKCA
WEEE
Balluff - BCC02R9 - M8 double-ended 3 pin cordset 2 meter
BCC M313-M313-30-300-PX0334-020
Connection 1 - M8x1-Female, straight, 3-pin, A-coded
Connection 2 - M8x1-Male, straight, 3-pin, A-coded
Cable - PUR black, 2 m, drag chain compatible
Number of conductors - 3
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K/IP67, IP69K
Approval/Conformity
CE
cULus
WEEE
Balluff - BCC09FR - M12 double-ended 5 pin cordset 2 meter
BCC M415-M415-3A-312-PX0534-020
Connection 1 - M12x1-Female, straight, 5-pin, A-coded
Connection 2 - M12x1-Male, straight, 5-pin, A-coded
Cable - PUR black, 2 m, drag chain compatible
Number of conductors - 5
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
Adapters
Connection 1 - M8x1-Female, straight, 4-pin, A-coded
Connection 2 - M12x1-Male, straight, 4-pin, A-coded
Operating voltage Ub - 30 VDC / 30 VAC
Rated current (40 °C) - 3.0 A
IP rating - IP67
Ambient temperature - -25...85 °C
Approval/Conformity
WEEE
5 meter
M8x1-Female, angled, 3-pin, A-coded
BCC M323-0000-10-001-PX0334-050
Connection - M8x1-Female, angled, 3-pin, A-coded
Switching output - Complementary
Cable - PUR black, 10 m, drag chain compatible
Number of conductors - 3
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity
CE
cULus
WEEE
M12x1-Female, Angled, 5-pin 4C, A-coded - PUR black, 5 m, drag chain compatible
BCC M425-0000-1A-003-PX0434-050
Connection - M12x1-Female, angled, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
5 meter
M12x1-Female, Angled, 5-pin 4C, A-coded - PUR black, 5 m, drag chain compatible, with LED indicators.
BCC M425-0000-1A-008-PX0434-050
Connection - M12x1-Female, Angled, 5-pin, A-coded
Power indicator - Green LED
Function indicator (Pin 4) - LED yellow
Switching output - PNP NO/NC antivalent
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 30VDC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
5 meter

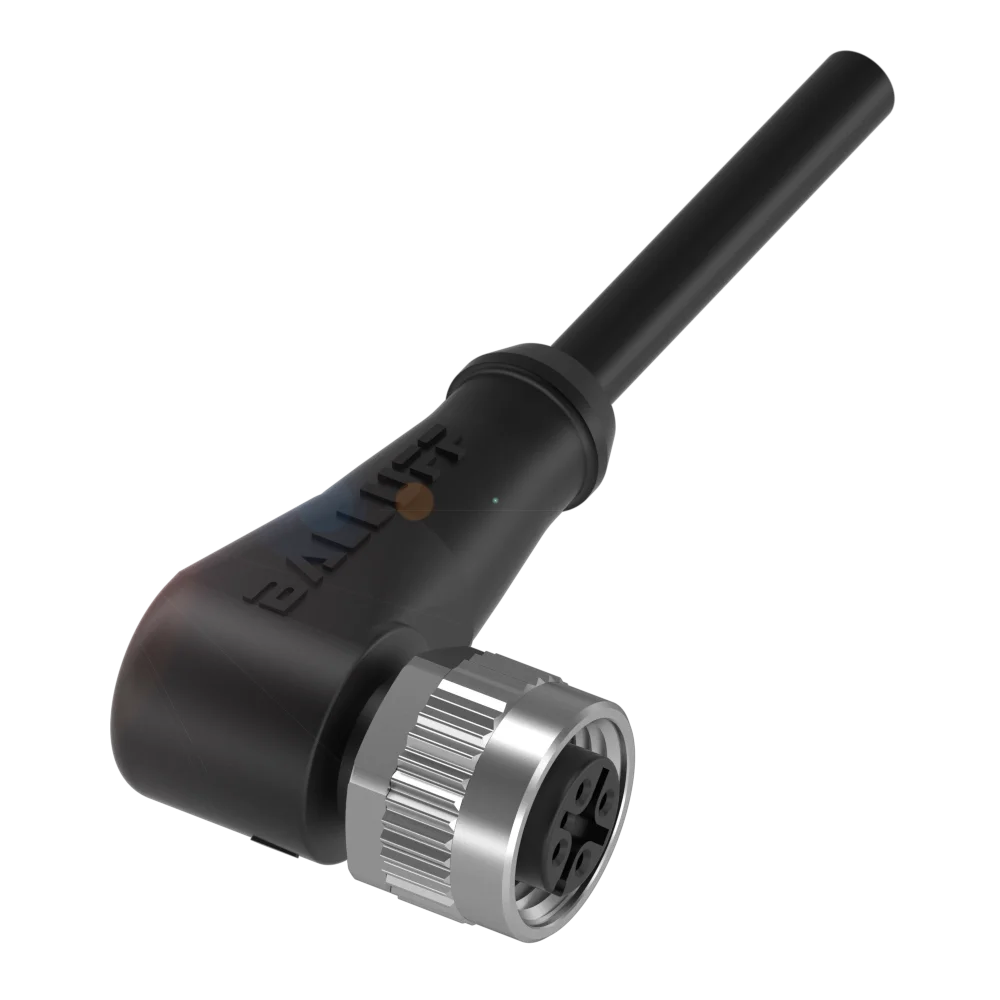

M12x1-Female, angled, 5-pin 5C, A-coded - PUR black, 5 m, drag chain compatible
BCC M425-0000-1A-017-PX0534-050
Connection - M12x1-Female, angled, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 5
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE

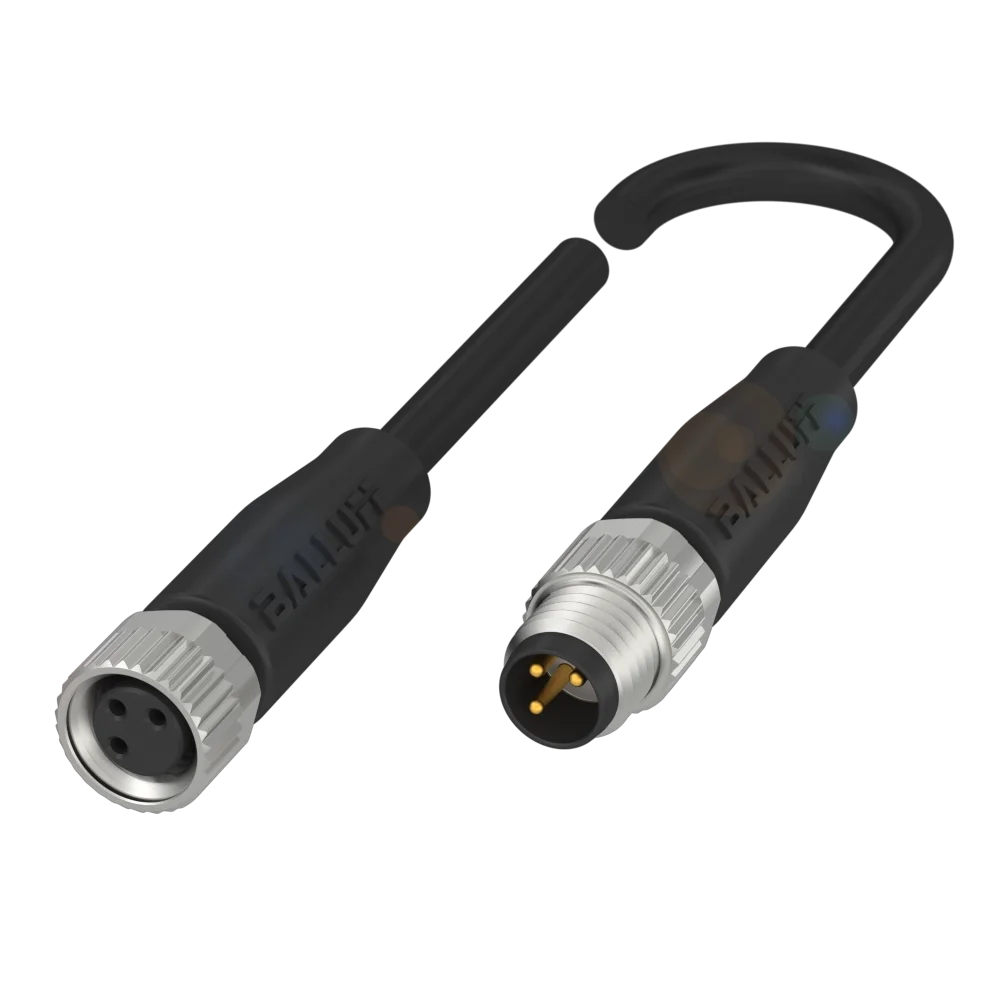

Double-ended cordsets
BCC M313-M313-30-300-PX0334-050
Connection 1 - M8x1-Female, straight, 3-pin, A-coded
Connection 2 - M8x1-Male, straight, 3-pin, A-coded
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 3
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity :CE, cULus, WEEE
Balluff - BCC039M - M12 double-ended 4 pin cordset 2 meter
BCC M415-M414-3A-304-PX0434-020
Connection 1 - M12x1-Female, straight, 5-pin, A-coded
Connection 2 - M12x1-Male, straight, 4-pin, A-coded
Cable - PUR black, 2 m, drag chain compatible
Number of conductors - 4
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
Balluff - BCC09FU - M12 double-ended 5 pin cordset 5 meter
BCC M415-M415-3A-312-PX0534-050
Connection 1 - M12x1-Female, straight, 5-pin, A-coded
Connection 2 - M12x1-Male, straight, 5-pin, A-coded
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 5
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
Function - Output converter (PNP/NPN)
Operating voltage Ub - 10...30 VDC
Digital inputs - PNP
Digital Outputs - NPN
Connection - M12x1
Connection for sensor - M12x1-Female, 4-pin
Housing material - PBT , PA
Dimension - Ø 20 x 60 mm
Ambient temperature - 0...60 °C
IP rating - IP67
Approval/Conformity
CE
UKCA
WEEE
M8 - 4 Pin- 4 Core
Balluff - BCC02N4 - M8 - 4 pin single ended cordset straight 10 meter
BCC M314-0000-10-003-PX0434-100
Connection - M8x1-Female, straight, 4-pin, A-coded
Cable - PUR black, 10 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity
CE
cULus
UKCA
WEEE
M12x1-Female, straight, 5-pin 4C, A-coded - PUR black, 10 m, drag chain compatible
BCC M415-0000-1A-003-PX0434-100
Connection - M12x1-Female, straight, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
10 meter
M12x1-Female, straight, 5-pin 4C, A-coded - PUR black, 10 m, drag chain compatible, with LED indicators.
BCC M415-0000-1A-008-PX0434-100
Connection - M12x1-Female, straight, 5-pin, A-coded
Power indicator - Green LED
Function indicator (Pin 4) - LED yellow
Switching output - PNP NO/NC antivalent
Cable - PUR black, 10 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 30 VDC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
10 meter
Balluff - BCC039M - M12 double-ended 4 pin cordset 5 meter
BCC M415-M414-3A-304-PX0434-020
Connection 1 - M12x1-Female, straight, 5-pin, A-coded
Connection 2 - M12x1-Male, straight, 4-pin, A-coded
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
Balluff - BCC04WH - M12 - DIN double ended cordset 0.6 meter
BCC VA04-M413-3E-664-PX0350-006
Connection 1 - A, DIN-0°/180°-Valve connector, angled, 4-pin
Connection 2 - M12x1-Male, straight, 3-pin, A-coded
Function indicator - Yellow LED/No
Suppressor - Suppressor diode
Cable - PUR black, 0.6 m, drag chain compatible
Number of conductors - 3
Cable temperature, fixed routing - -50...80 °C
Cable temperature, flexible routing - -25...80 °C
Operating voltage Ub - 24 VDC / 24 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67/IP67, IP69K
Approval/Conformity
CE
WEEE
Function - Output converter (PNP/NPN)
Operating voltage Ub - 10...30 VDC
Digital inputs - NPN
Digital Outputs - PNP
Connection - M12x1
Connection for sensor - M12x1-Female, 4-pin
Housing material - PBT , PA
Dimension - Ø 20 x 60 mm
Ambient temperature - 0...60 °C
IP rating - IP67
Approval/Conformity
CE
UKCA
WEEE
M8x1-Female, angled, 4-pin, A-coded
BCC M324-0000-10-003-PX0434-100
Connection - M8x1-Female, angled, 4-pin, A-coded
Switching output - Complementary
Cable - PUR black, 10 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity
CE
cULus
WEEE
M12x1-Female, Angled, 5-pin 4C, A-coded - PUR black, 10 m, drag chain compatible
BCC M425-0000-1A-003-PX0434-100
Connection - M12x1-Female, Angled, 5-pin, A-coded
Switching output - Complementary
Cable - PUR black, 5 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
10 meter
M12x1-Female, angled, 5-pin 4C, A-coded - PUR black, 10 m, drag chain compatible, with LED indicators.
BCC M425-0000-1A-008-PX0434-100
Connection - M12x1-Female, angled, 5-pin, A-coded
Power indicator - Green LED
Function indicator (Pin 4) - LED yellow
Switching output - PNP NO/NC antivalent
Cable - PUR black, 10 m, drag chain compatible
Number of conductors - 4
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 30 VDC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity
CE
cULus
WEEE
10 meter
