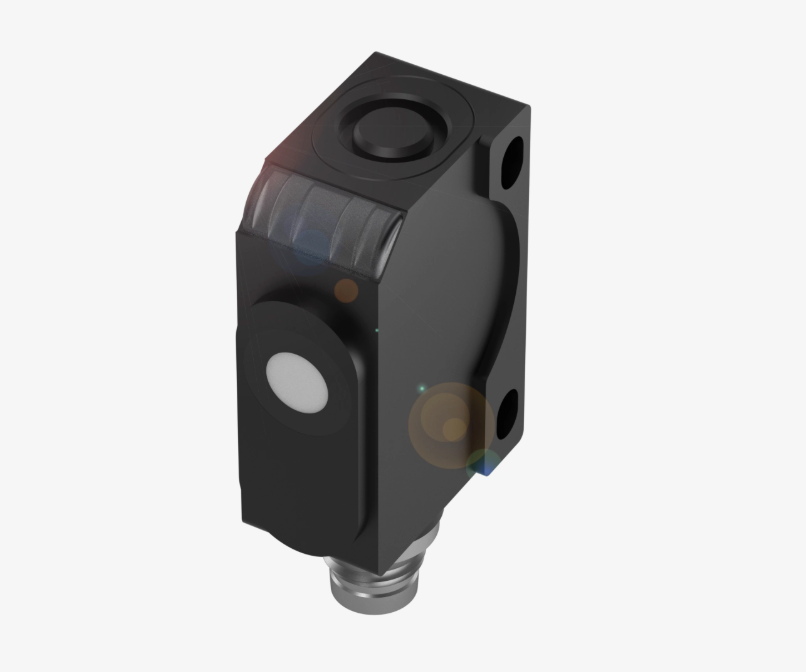

Block type Ultra sonic sensor with analog output.
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. Please call to confirm
Style Housing - block style
Switching output - Analog 4-20mA or 0-10V, & NPN or PNP options available
Connection - Connector, M8x1-Male, 4-pin
Housing material - ABS
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 20-250 mm, 50-350mm, 120-1000mm
Switching frequency - 25 Hz
Operating voltage Ub - 20...30 VDC
Ambient temperature - -25...70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 %FS
Approval/Conformity :CE, WEEE, UKCA, cULus
