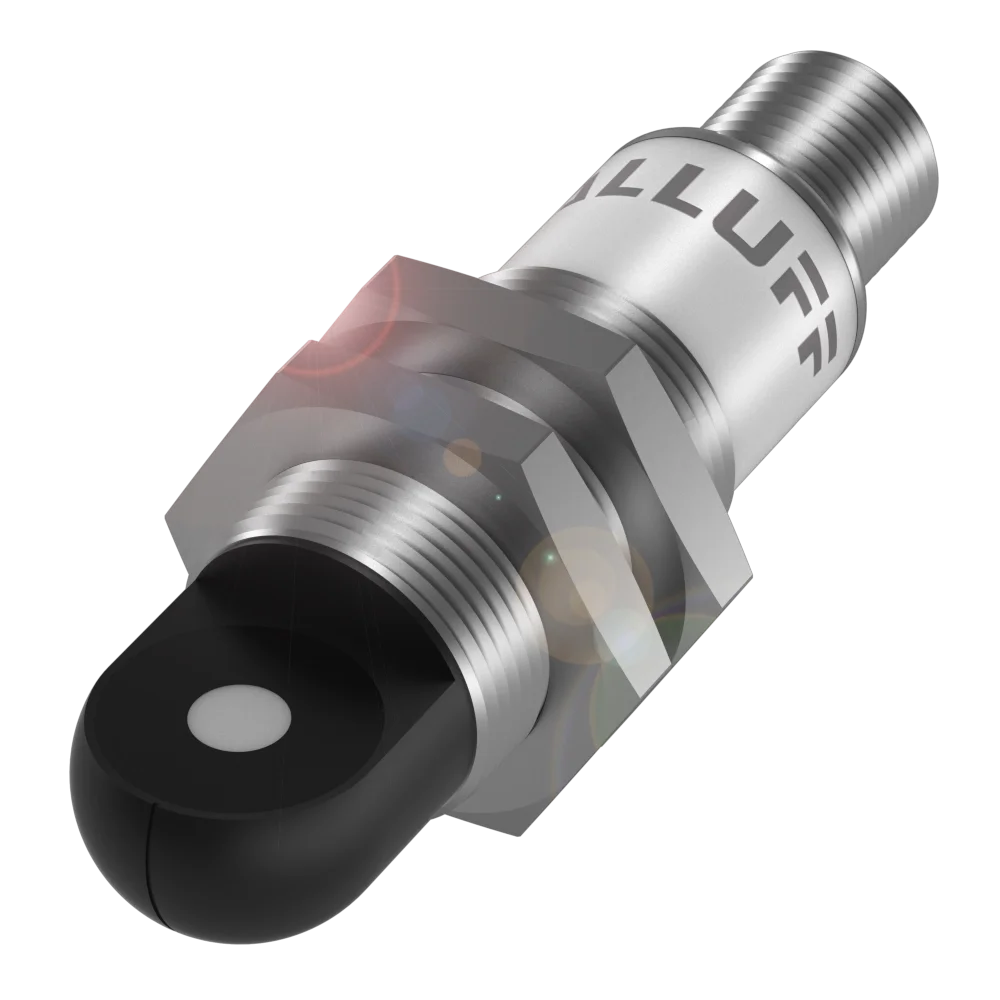

M18 Ultra sonic sensor with angled head. Analog or Digital output version available
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
BUS W18M1-GPXI-02/015-S92G-511
Style Housing - Ø 18 mm
Interface - IO-Link 1.1
Switching output - Analog current (4-20mA) or Voltage (0-10V) or NPN/PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 25…250 mm, 30...350 mm, 65...600 mm, 120...1300 mm
Switching frequency - 25 Hz
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
