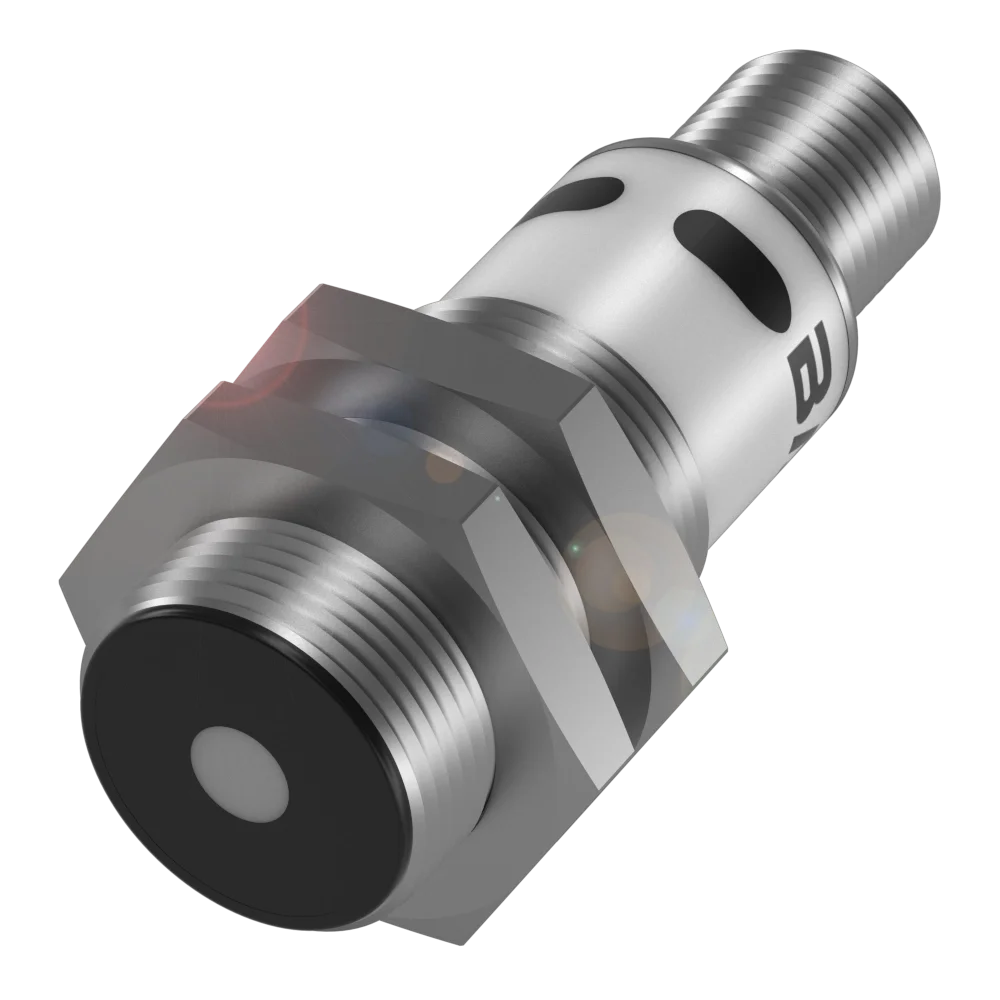

M18 Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
BUS M18M1-GPXI-03/025-S92G-511

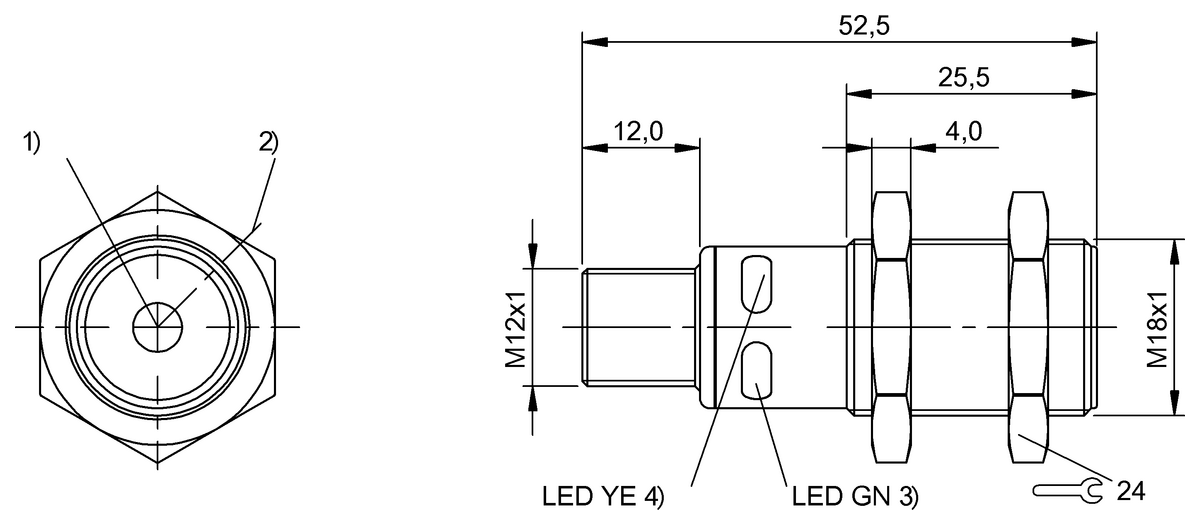

Style Housing - Ø 18 mm
Interface - IO-Link 1.1
Switching output - Analog 4-20mA or 0-10V or PNP/NPN
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass, nickel-plated PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Max Range - 250mm, 350mm, 600mm, 1300mm
Switching frequency - 25 Hz
Operating voltage Ub - 10…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
