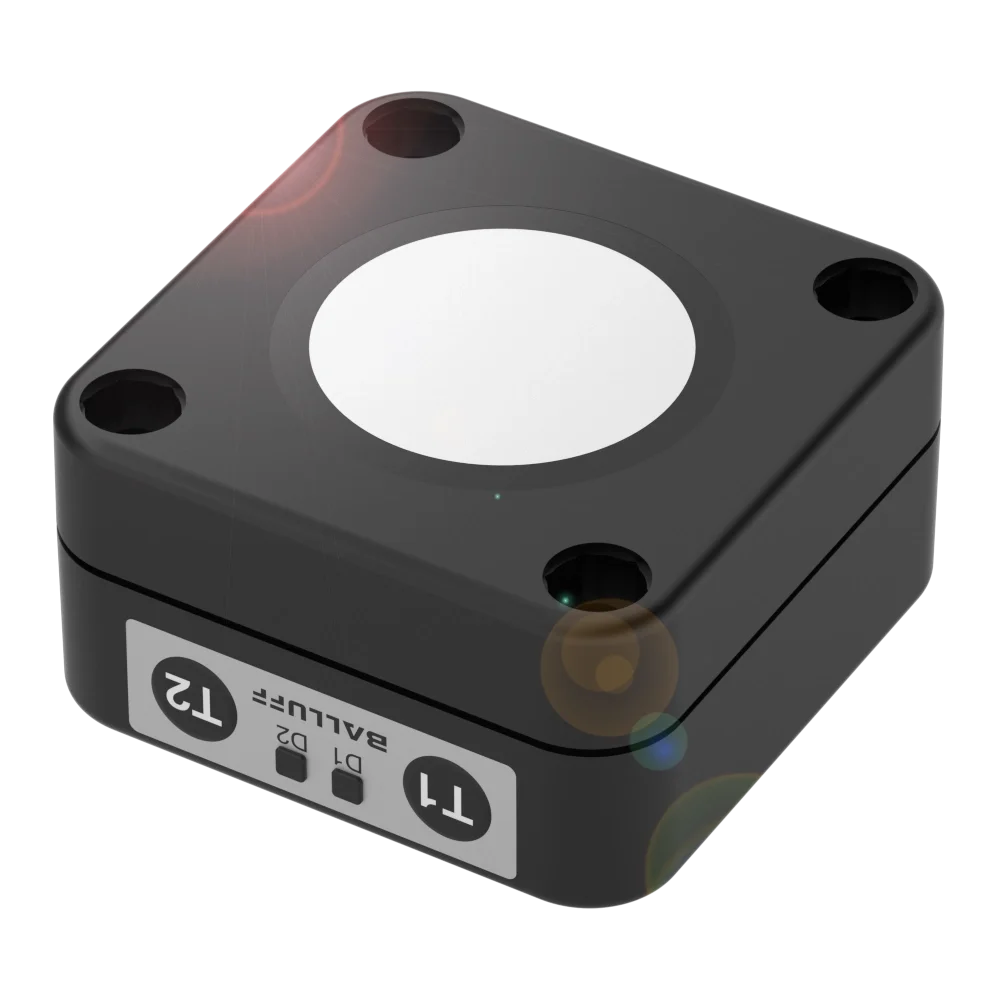

Square style Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. Please call to confirm
Style Housing - Block style
Interface - IO-Link 1.0
Switching output - Analog 4-20mA/0-10V or NPN/PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - PBT
Material sensing surface - PU foam/Epoxy resin/Glass
Range - 350…5000 mm, 600…8000mm
Switching frequency - 4 Hz
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
