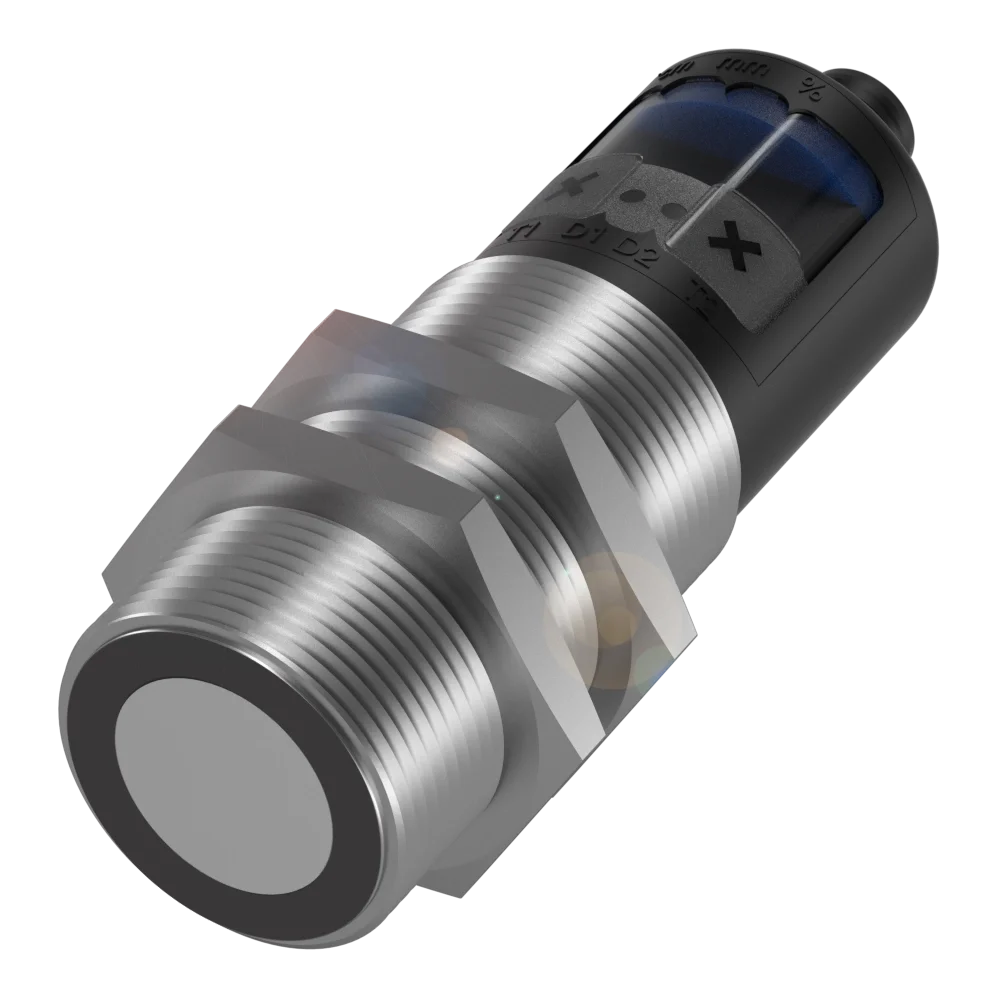

M30 Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm

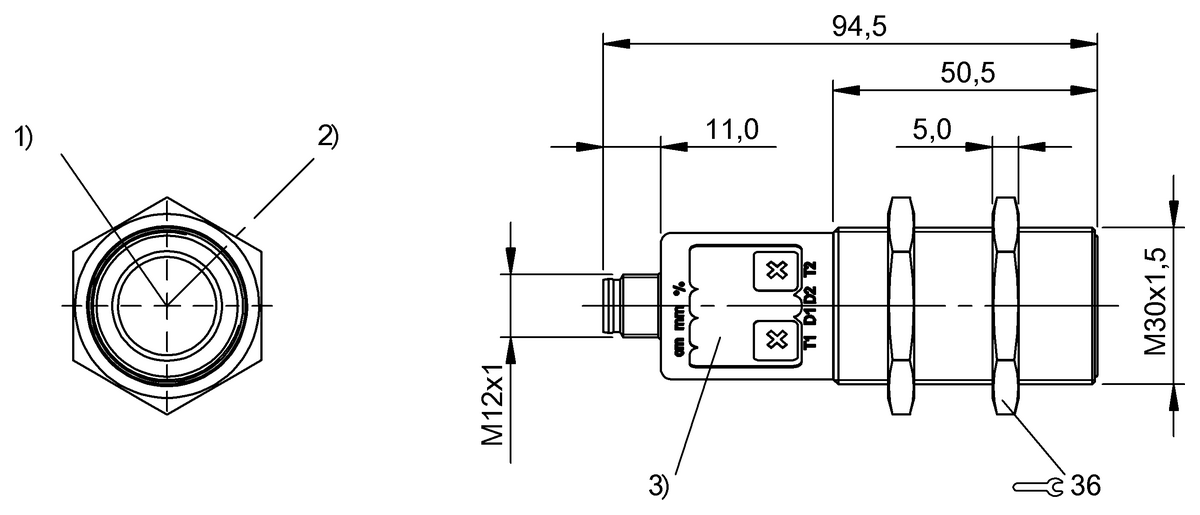

Style Housing - Ø 30 mm
Analog output - Analog 4-20mA/0-10V or NPN or PNP
Connection - Connector, M12x1-Male, 5-pin
Housing material - Brass or Stainless steel
Material sensing surface - PU foam/Epoxy resin/Glass
Max range - 30…350mm, 65…600mm, 200…2000mm, 350…5000mm, 600…8000mm
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Approval/Conformity - cULus, CE, WEEE, UKCA
