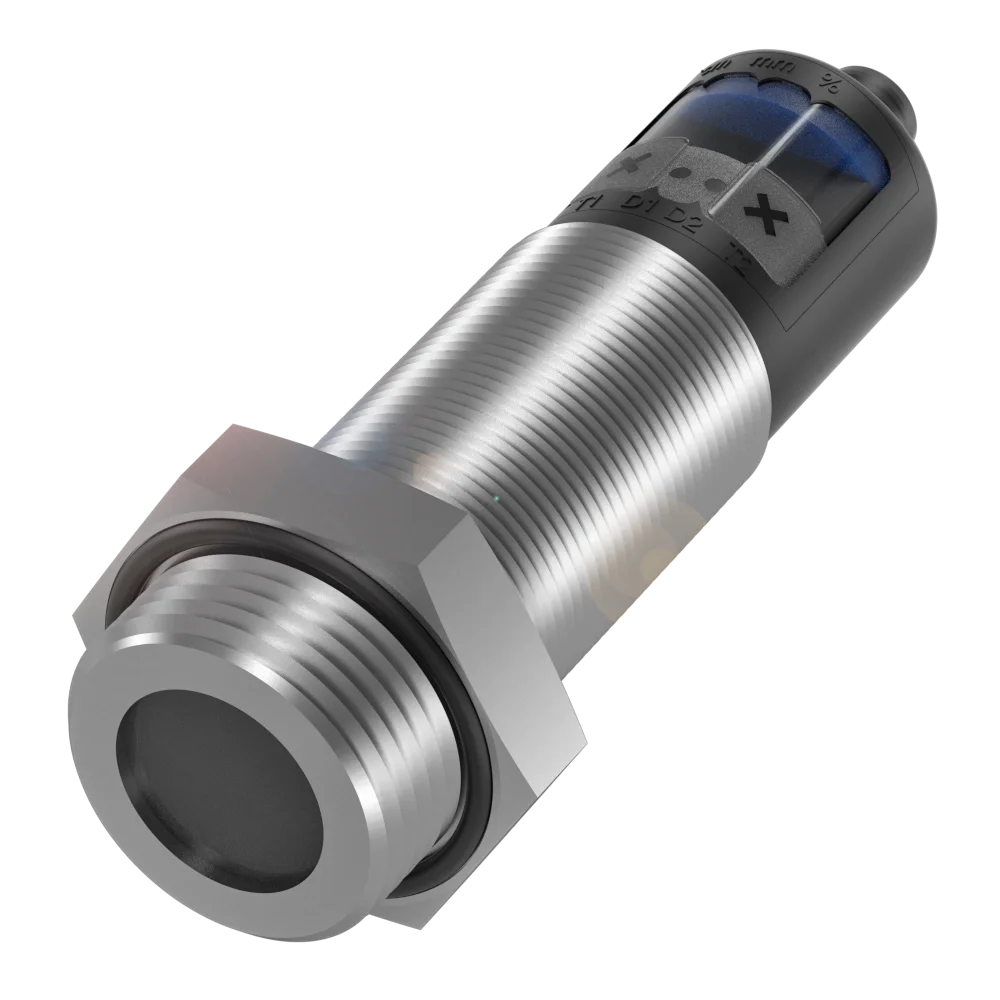

M30 Pressure rated Ultra sonic sensor with analog or Digital output
Configurable specifications for this product are available (output type & distance) Price will depend on specifications. please call to confirm
Style Housing - Ø 47 mm
Process connection - G 1"
Analog output - Analog current (4-20mA)/Voltage (0-10V) or PNP
Switching output - PNP NO/NC
Connection - Connector, M12x1-Male, 5-pin
Housing material - 1.4571 stainless steel, PBT, TPU
Material sensing surface - PTFE
Range - 85…1500 mm, 200...5000 mm
Switching frequency - 9 Hz
Operating voltage Ub - 9…30 VDC
Ambient temperature - -25…70 °C
IP rating - IP67
Repeat accuracy - ± 0.15 % FS
Pressure rating max. - 6 bar
Approval/Conformity - cULus, CE, WEEE, UKCA
