Diffused
Block type
BOS 6K-UU-LH10-S49
Series - 6K
Dimension - 12 x 34 x 21.6 mm
Interface - PNP/NPN normally open/normally closed (NO/NC)
Input function - Key disable on/off
Same function as button - —
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Focused
Light type - Laser red light
Light spot size - 1 x 1 mm at 150 mm
Range - 4...150 mm
Connection - Connector, M8x1-Male, 3-pin
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity :CE, UKCA, cULus, WEEE
Balluff - BOS01J8 M18 diffuse photoelectric sensor PNP (NO/NC)
Series - 18M
Dimension - Ø 18 x 75 mm
Interface - PNP normally open/normally closed (NO/NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, energetic
Beam characteristic - Divergent
Light type - LED, red light
Light spot size - Ø 50 mm at 600 mm
Range - 0...500 mm
Connection - Connector, M12x1-Male, 4-pin
Housing material - Brass, nickel-plated
Material sensing surface - Glass
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
Excluding GST
Series - R090K
Dimension - 10.7 x 32.7 x 19.5 mm
Interface - PNP normally open/normally closed (NO/NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, energetic
Beam characteristic - Divergent
Light type - LED, red light
Range - 0...500 mm
Connection - Cable, 2.00 m, PVC
Housing material - PC, PBT
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
cULus
CE
UKCA
WEEE
M18
Excluding GST
M18 / side mount, Photoelectric sensor, diffuse, PNP NO/NC
Connector, M12x1-Male, 4-pin, 10...30 VDC
BOS R81K-PA-RD10-S4
Series - R81K
Dimension - 15 x 48.9 x 31 mm
Interface - PNP normally open (NO), normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation -Diffuse sensor
Light type - LED, red light
Light spot size - 18 x 18 mm at 300 mm
Range - 5...300 mm
Connection - Connector, M12x1-Male, 4-pin
Housing material - ABS, PMMA
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
Scope of delivery - Mounting bracket
Retroreflective
Excluding GST
M18 / side mount, Photoelectric sensor Retroreflective ,PNP NO/NC
Connector M12x1-Male, 4-pin, 10...30 VDC
(includes reflector)
Series - R81K
Dimension - 15 x 48.9 x 31 mm
Interface - PNP normally open (NO), normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation -Retroreflective sensor
Light type - LED, red light
Light spot size - 180 x 180 mm at 3 m
Range - 0...3 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - ABS, PMMA
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
Scope of delivery - Mounting bracket
BOS 18M-PA-LR20-S4
Series - 18M
Dimension - Ø 18 x 75 mm
Interface - PNP normally open (NO), PNP normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Retroreflective sensor
Beam characteristic - Collimated
Light type - Laser red light
Light spot size - Ø 10 mm at 16 m
Range - 0...16 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - Brass, nickel-plated
Material sensing surface - Glass
Operating voltage Ub - 10...30 VDC
Approval/Conformity :cULus, CE, UKCA
Through-beam
Block / M18 style
Excluding GST
M18 / side mount, Photoelectric sensor, Through-beam Emitter
Connector M12x1-Male, 4-pin, 10...30 VDC
Series
R81K
Principle of operation - Photoelectric sensor
Principle of optical operation - Through-beam sensor (Emitter)
Light type - Infrared
Range - 0.3...20 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - ABS , PMMA
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
Scope of delivery - Mounting bracket
M12
Excluding GST
M12 inductive sensor, 8mm, NPN normally open (NO), Non-Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 4-pin, 10...30 VDC
Series - 12M
Dimension - Ø 12 x 60 mm
Interface - PNP normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Through-beam sensor (receiver)
Light type - LED, red light
Range - 0...8 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - Brass, nickel-plated
Material sensing surface - PMMA
Operating voltage (Ub) - 10...30 VDC
Approval/Conformity - CE, UKCA, cULus, WEEE
Trademark - Global
Fork style
Dimension - 6 x 21.3 x 25.4 mm
Fork opening - 5 mm
Interface - PNP normally closed (NC) / PNP normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Through-beam sensor
Light type - LED infrared
Connection - Cable, 1 m, PVC
Housing material - PBT
Material sensing surface - PMMA
Operating voltage (Ub) - 5...24 VDC
Approval/Conformity - CE, cULus, UKCA, WEEE
Excluding GST
BOS 6K-UI-RD10-S75
Series - 6K
Dimension - 12 x 34 x 21.6 mm
Interface - IO-Link-Device 1.1.3 - PNP/NPN/IO-Link NO/NC
Input function - Key disable on/off
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, energetic
Beam characteristic - Divergent
Light type - LED, red light
Light spot size - 70 x 70 mm at 800 mm
Range - 0...800 mm
Connection - Connector, M8x1-Male, 4-pin
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
Excluding GST
Inexpensive and small entry-level version of our cubic diffuse sensor
Key features
Series - 5K
Dimension - 10.8 x 32.7 x 19.5 mm
Interface - PNP normally open/normally closed (NO/NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Focus, typical at 260 mm
Light type - Laser red light
Light spot size - 0.2 x 0.3 mm at focal point
Range - 20...300 mm
Connection - Cable, 2.00 m, PVC
Housing material - PC PBT
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
cULus
CE
WEEE
UKCA
Trademark - Global
BOS 12M-X-RS10-S4
Series - 12M
Dimension - Ø 12 x 60 mm
Principle of operation - Photoelectric sensor
Principle of optical operation - Through-beam sensor (Emitter)
Light type - LED, red light
Light spot size - Ø 280 mm at 8 m
Range - 0...8 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - Brass, nickel-plated
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity :CE, UKCA, cULus, WEEE
Trademark - Global
Excluding GST
M18 / side mount, Photoelectric sensor with background suppression, defuse, PNP NO/NC
Connector M12x1-Male, 4-pin, 10...30 VDC
Series - R81K
Dimension - 15 x 48.9 x 31 mm
Interface - PNP normally open (NO), normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Triangulation
Light type - LED, red light
Light spot size - 8 x 8 mm at 100 mm
Range - 100 mm
Connection - Connector, M12x1-Male, 4-pin
Housing material - ABS, PMMA
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
Scope of delivery - Mounting bracket
51 x 51(60)mm Reflector for use with photoelectric Retroreflective Sensors
Excluding GST
M18 / side mount, Photoelectric sensor, Through-beam Receiver
Connector M12x1-Male, 4-pin, 10...30 VDC PNP NO/NC
Series - R81K
Dimension - 15 x 48.9 x 31 mm
Interface - PNP normally open (NO), normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation -Through-beam sensor (receiver)
Light type - Infrared
Range - 0.3...20 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - ABS, PMMA
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
Scope of delivery - Mounting bracket

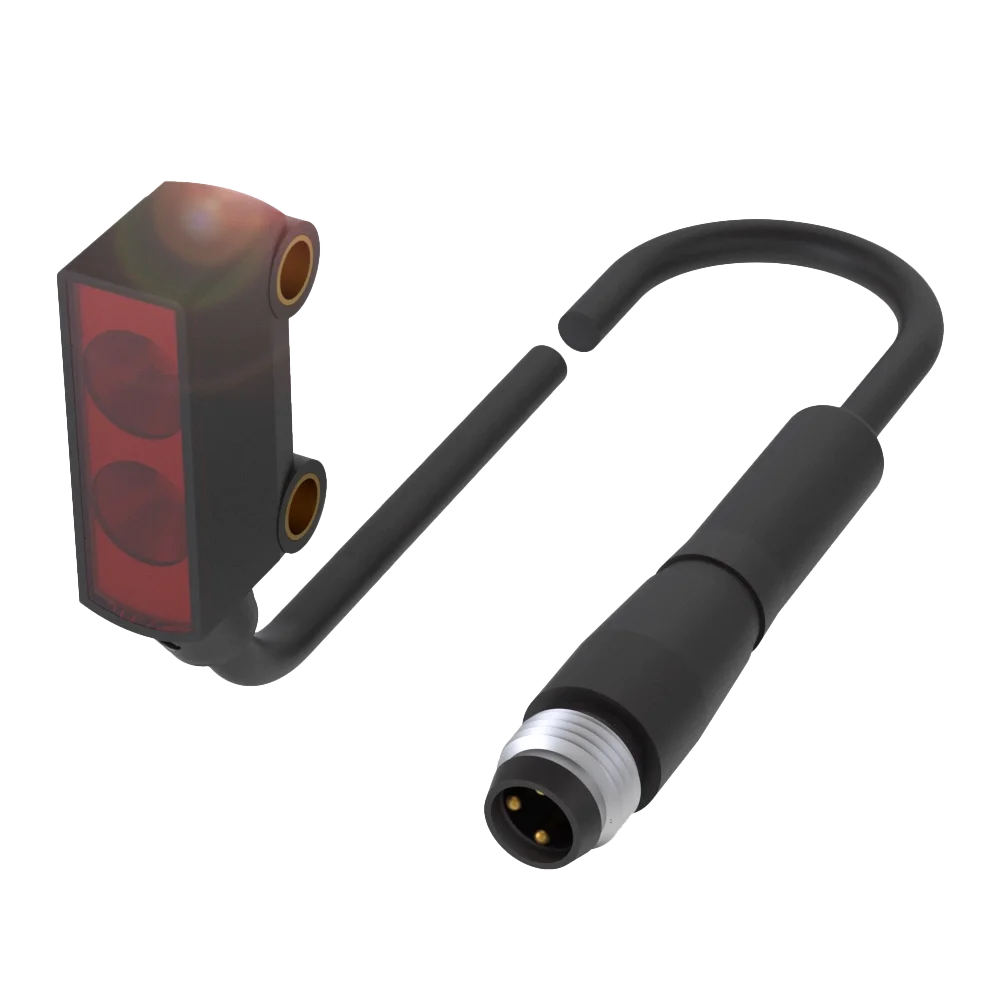

BOS R020K-PS-RF11-00,2-S49
Series - R020K
Dimension - 7.7 x 26.8 x 13.5 mm
Interface - PNP normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, HGA fixed
Special optical feature - Background suppression
Beam characteristic - Focus, typical at 15 mm
Light type - LED, red light
Light spot size - Ø 3 mm at 15 mm
Range - 1...30 mm
Connection - Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity :CE, cULus, WEEE, UKCA
BOS 23K-PA-LH20-S4
Special characteristics - Washdown
Series - 23K
Dimension - 23 x 51 x 52.4 mm
Interface - PNP normally open (NO), PNP normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Collimated
Light type - Laser red light
Light spot size - 2.5 x 3.5 mm at 800 mm
Range - 5...800 mm
Connection - Connector, M12x1-Male, 4-pin
Housing material - PC, ABS
Material sensing surface - PMMA
Operating voltage Ub - 12...30 VDC
Approval/Conformity :CE, Ecolab, cULus, WEEE
Dimension - 13.7 x 13 x 21.3 mm
Fork opening - 5 mm
Interface - PNP normally closed (NC) / PNP normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Through-beam sensor
Light type - LED infrared Infrared
Connection - Connector, PVC
Housing material - PBT
Material sensing surface - PMMA
Operating voltage Ub - 5...24 VDC
Approval/Conformity
CE
cULus
UKCA
WEEE
BOS R020K-NS-RF11-02
Series - R020K
Dimension - 7.7 x 26.8 x 13.5 mm
Interface - NPN normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, HGA fixed
Special optical feature - Background suppression
Light type - LED, red light
Light spot size - Ø 3 mm at 15 mm
Range - 1...30 mm
Connection - Cable, 2.00 m, PVC
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity:
-CE
-cULus
-WEEE
-UKCA
Inexpensive and small entry-level version of our cubic diffuse sensor
Key features
Series - 5K
Dimension - 10.8 x 43.5 x 19.5 mm
Interface - PNP normally open/normally closed (NO/NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Focus, typical at 260 mm
Light type - Laser red light
Light spot size - 0.2 x 0.3 mm (at focal point)
Range - 20...300 mm
Connection - Connector, M8x1-Male, 4-pin
Housing material - PC, PBT
Material sensing surface - PMMA
Operating voltage (Ub) - 10...30 VDC
Approval/Conformity - cULus, CE, WEEE, UKCA
Trademark - Global
