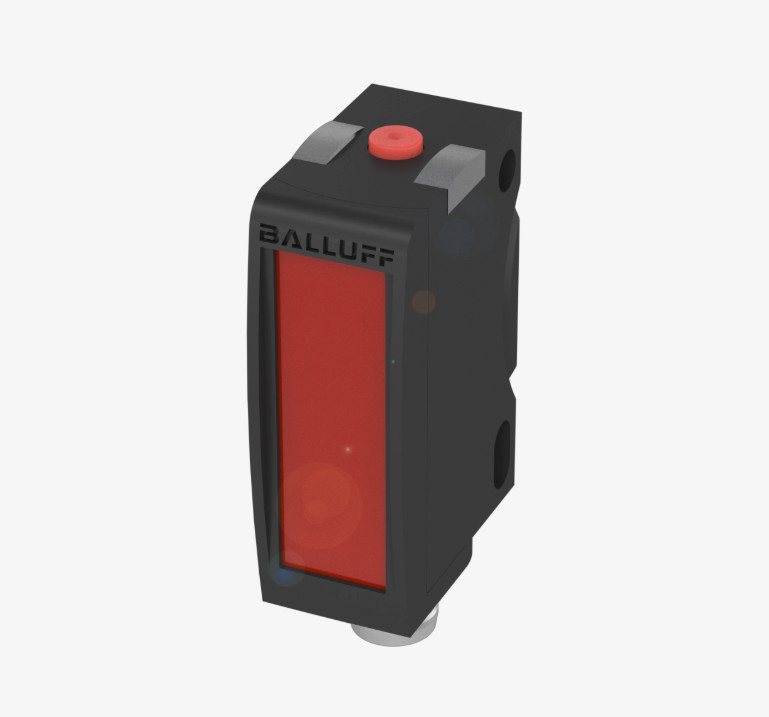

BOS 6K-UU-LH10-S49
Series - 6K
Dimension - 12 x 34 x 21.6 mm
Interface - PNP/NPN normally open/normally closed (NO/NC)
Input function - Key disable on/off
Same function as button - —
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Focused
Light type - Laser red light
Light spot size - 1 x 1 mm at 150 mm
Range - 4...150 mm
Connection - Connector, M8x1-Male, 3-pin
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity :CE, UKCA, cULus, WEEE
