BOS R020K-PS-RF11-00,2-S49
Series - R020K

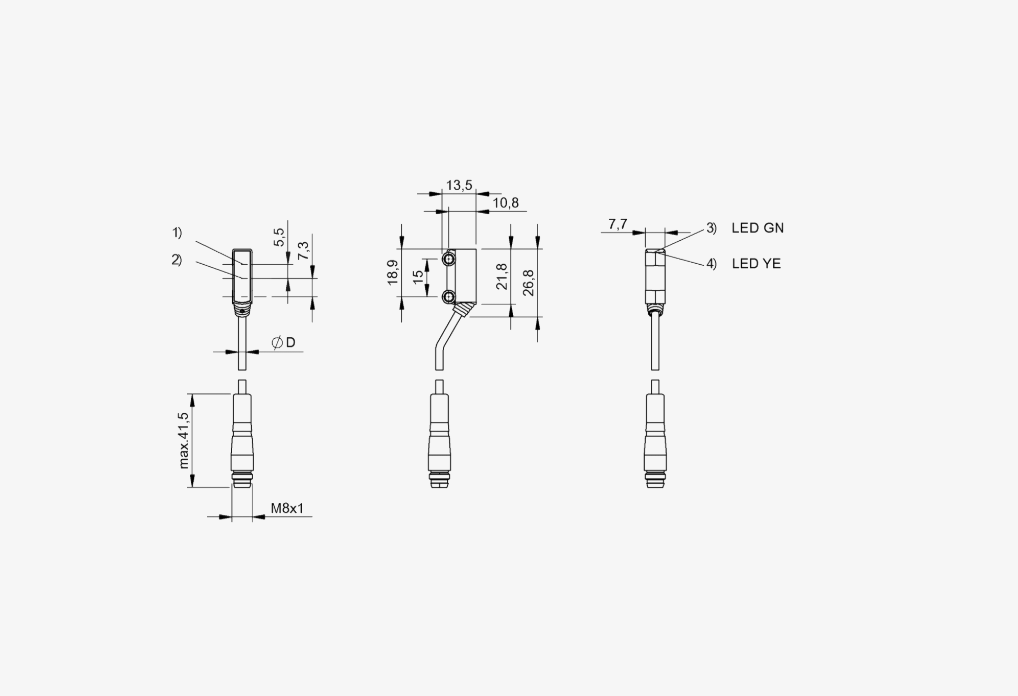

Dimension - 7.7 x 26.8 x 13.5 mm
Interface - PNP normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, HGA fixed
Special optical feature - Background suppression
Beam characteristic - Focus, typical at 15 mm
Light type - LED, red light
Light spot size - Ø 3 mm at 15 mm
Range - 1...30 mm
Connection - Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity :CE, cULus, WEEE, UKCA
