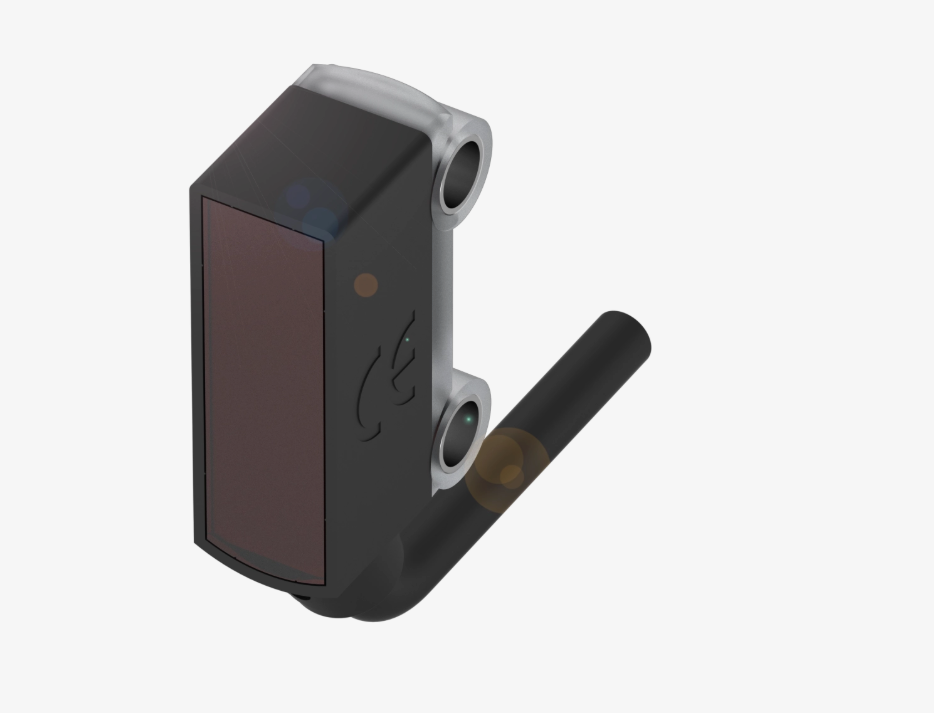

BOS R020K-NS-RF11-02
Series - R020K
Dimension - 7.7 x 26.8 x 13.5 mm
Interface - NPN normally open (NO)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, HGA fixed
Special optical feature - Background suppression
Light type - LED, red light
Light spot size - Ø 3 mm at 15 mm
Range - 1...30 mm
Connection - Cable, 2.00 m, PVC
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity:
-CE
-cULus
-WEEE
-UKCA
