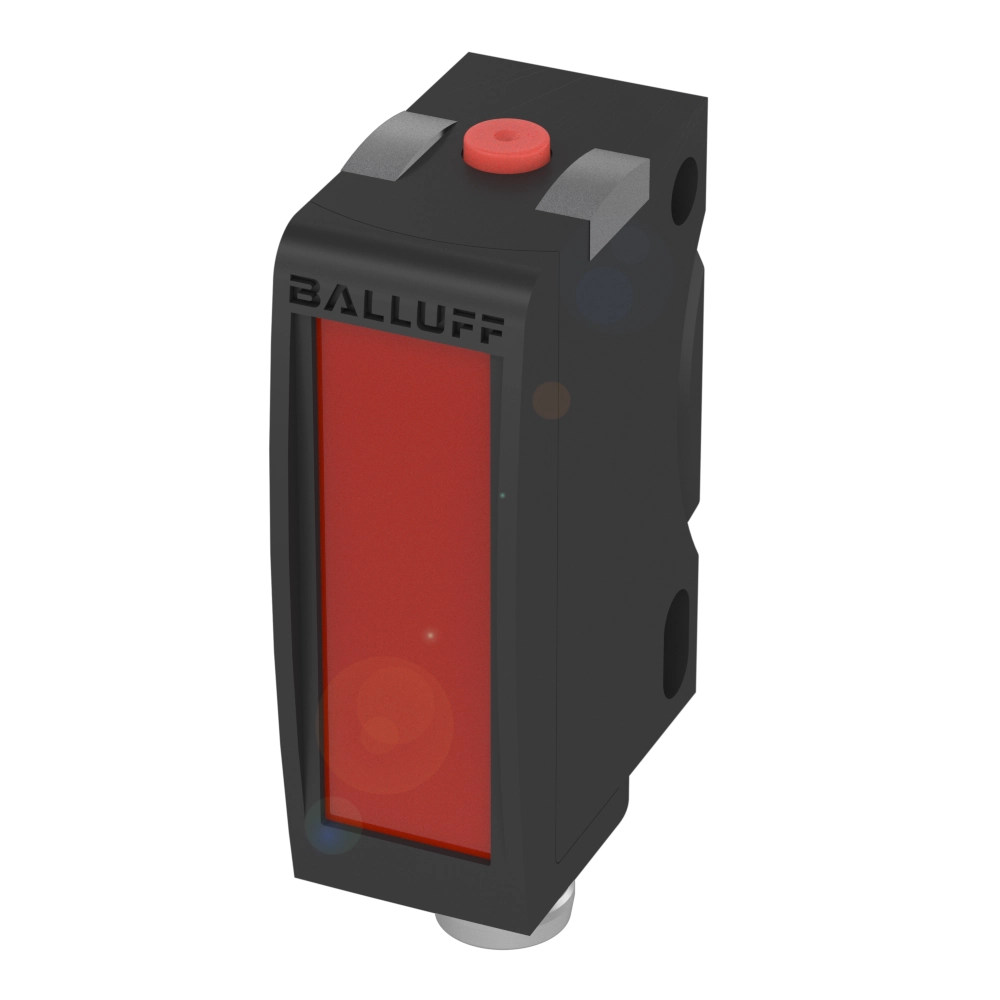

BOS 6K-UI-RD10-S75
Series - 6K
Dimension - 12 x 34 x 21.6 mm
Interface - IO-Link-Device 1.1.3 - PNP/NPN/IO-Link NO/NC
Input function - Key disable on/off
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, energetic
Beam characteristic - Divergent
Light type - LED, red light
Light spot size - 70 x 70 mm at 800 mm
Range - 0...800 mm
Connection - Connector, M8x1-Male, 4-pin
Housing material - ABS
Material sensing surface - PMMA
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
