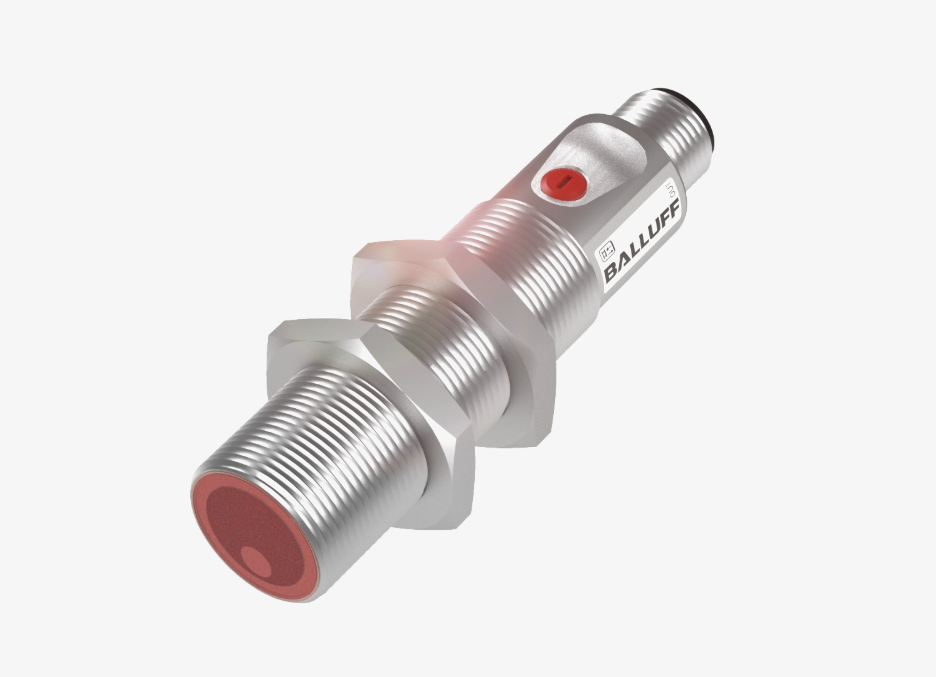

BOS 18M-PA-LR20-S4
Series - 18M
Dimension - Ø 18 x 75 mm
Interface - PNP normally open (NO), PNP normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Retroreflective sensor
Beam characteristic - Collimated
Light type - Laser red light
Light spot size - Ø 10 mm at 16 m
Range - 0...16 m
Connection - Connector, M12x1-Male, 4-pin
Housing material - Brass, nickel-plated
Material sensing surface - Glass
Operating voltage Ub - 10...30 VDC
Approval/Conformity :cULus, CE, UKCA
