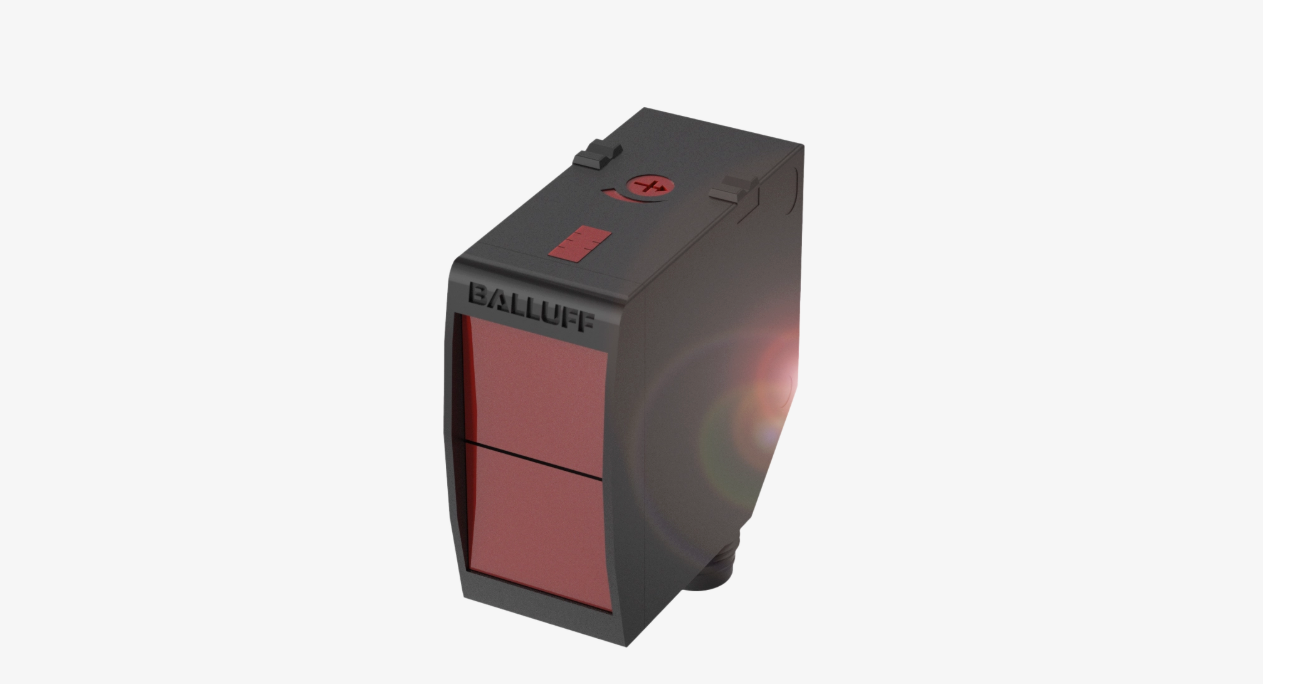

BOS 23K-PA-LH20-S4
Special characteristics - Washdown
Series - 23K

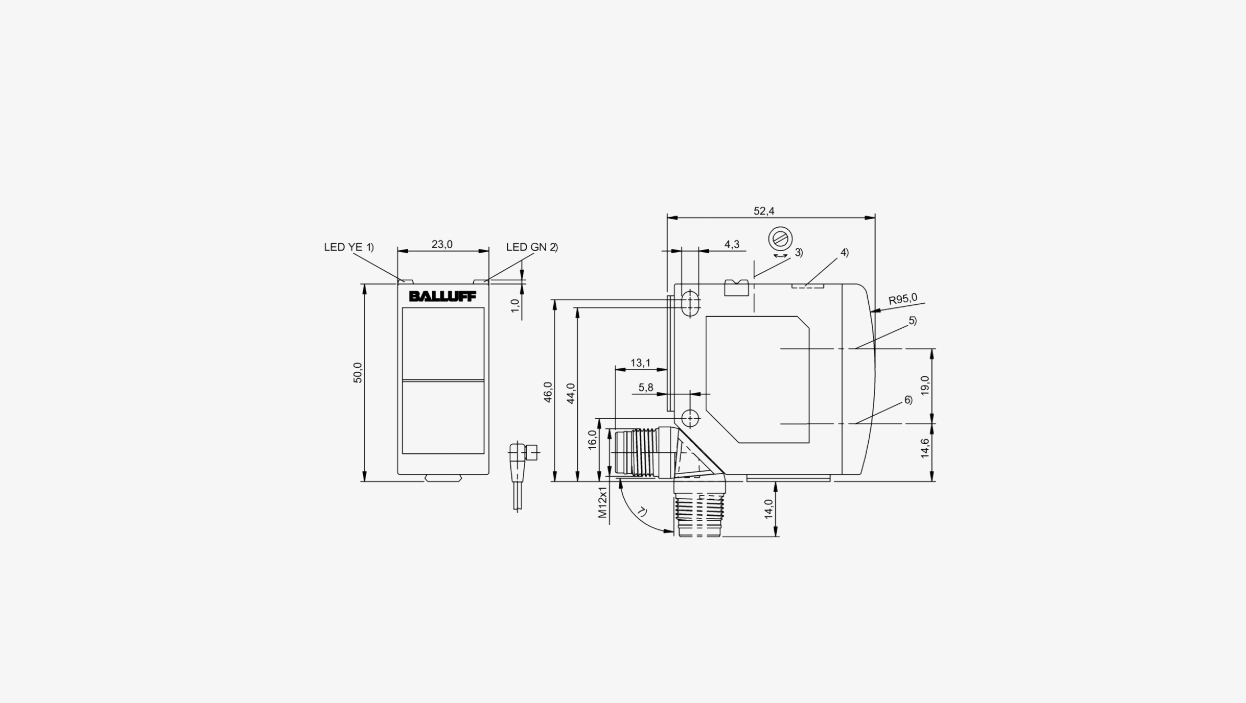

Dimension - 23 x 51 x 52.4 mm
Interface - PNP normally open (NO), PNP normally closed (NC)
Principle of operation - Photoelectric sensor
Principle of optical operation - Diffuse sensor, triangulation
Special optical feature - Background suppression
Beam characteristic - Collimated
Light type - Laser red light
Light spot size - 2.5 x 3.5 mm at 800 mm
Range - 5...800 mm
Connection - Connector, M12x1-Male, 4-pin
Housing material - PC, ABS
Material sensing surface - PMMA
Operating voltage Ub - 12...30 VDC
Approval/Conformity :CE, Ecolab, cULus, WEEE
