M12 inductive sensor, 8mm, PNP normally open (NO), NON - Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 3-pin, 10...30 VDC

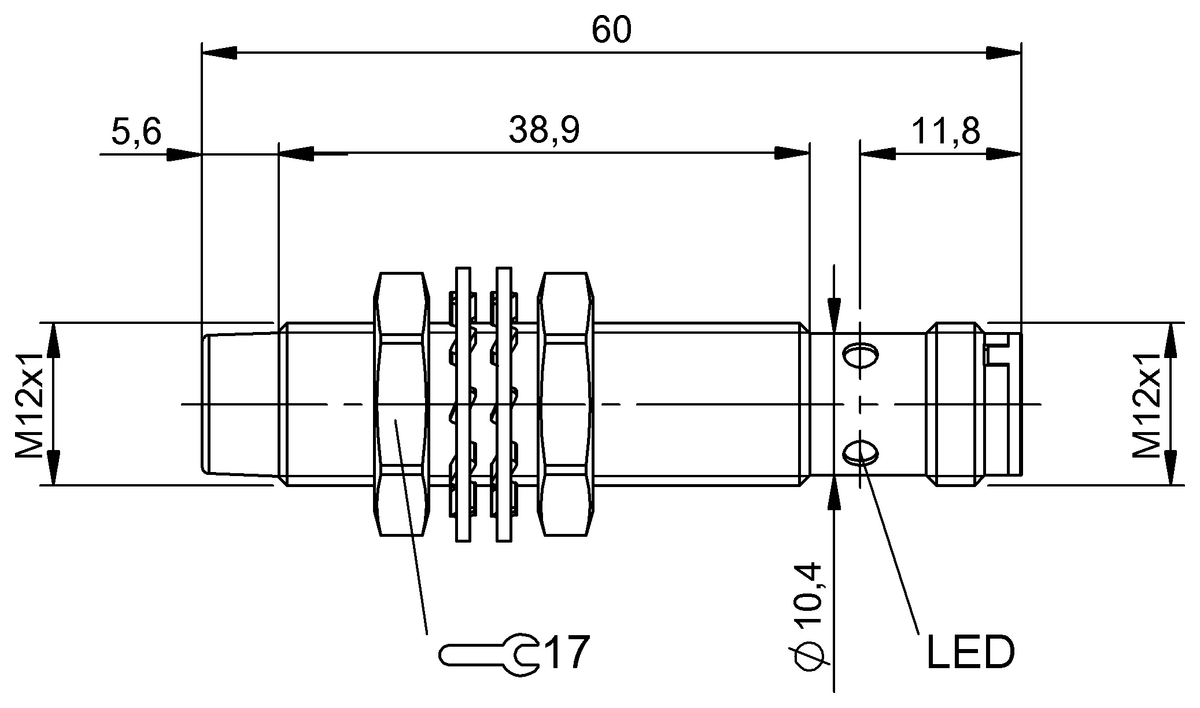

Dimension - Ø 12 x 60 mm
Version - M12x1 housing
Mounting part - Non-flush mounting
Sensing range - 8 mm
Switching output - PNP normally open (NO)
Switching frequency - 1000 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection (supply voltage IN/OUT) - Connector, M12x1-Male, 3-pin
Operating voltage - 10...30 V DC
IP rating - IP68
Approval/Conformity - CE, UKCA, cULus, WEEE
Ambient temperature - -25...70 °C
