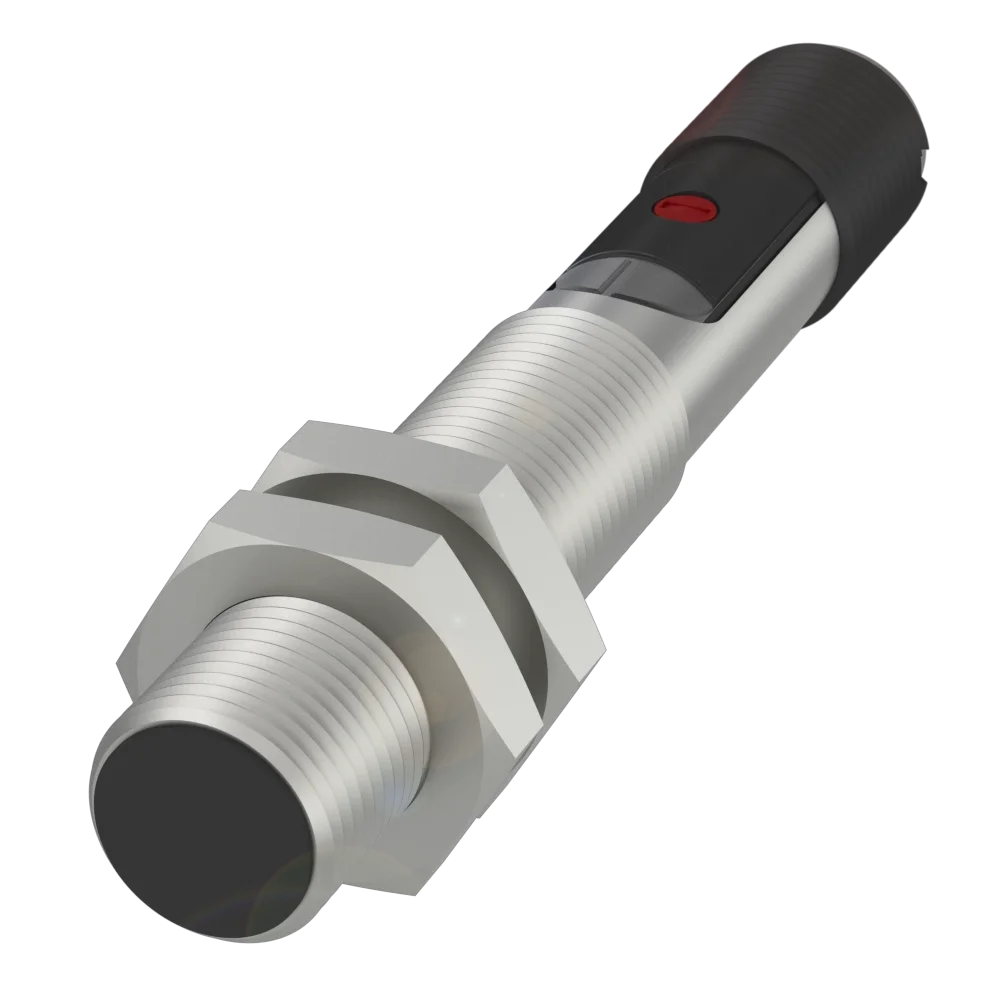

M12 Capacitive Proximity Sensor, PNP and NPN (NO or NC), with PBT, PTFE or stainless housing options available

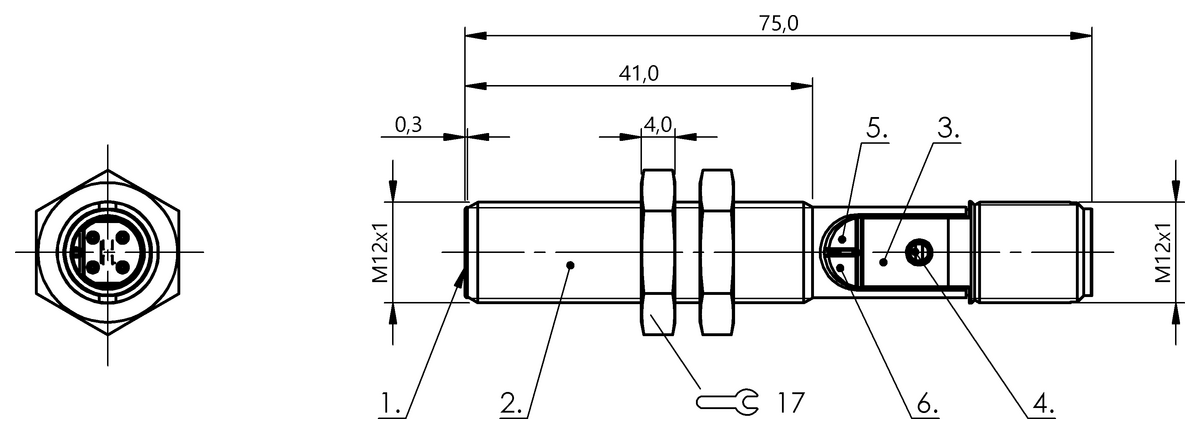

Style Housing - Ø 12 x 75 mm
Series - M12
Thread (A) - M12x1
Installation - for flush mounting
Connection - Connector, M12x1-Male, 3-pin
Switching output - PNP NO/NC or NPN NO/NC
Switching frequency - 100 Hz
Range - 1…4 mm
Sensitivity - Switching distance adjustable
Housing material - 1.4305, 1.4301, 1.4404 stainless steel, PBT or PTFE
Material sensing surface - PBT
Ambient temperature - -25…85 °C
Operating voltage Ub - 10…30 VDC
IP rating - IP67
Approval/Conformity - CE, UKCA, cULus, WEEE
