M18 Capacitive Proximity Sensor, PNP NO or NC options available with PBT or stainless housing

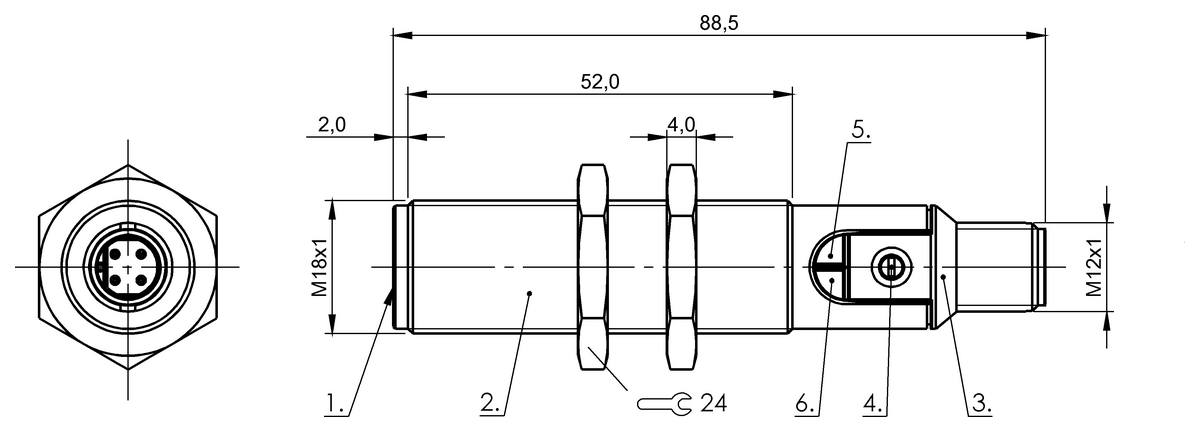

Style Housing - Ø 18 x 88.5 mm
Series - M18
Thread (A) - M18x1
Installation - for flush mounting
Connection - Connector, M12x1-Male, 3-pin
Switching output - PNP NC or NO
Switching frequency - 100 Hz
Range - 1…8 mm
Sensitivity - Switching distance adjustable
Housing material - PBT or stainless steel
Material sensing surface - PBT
Ambient temperature - -25…85 °C
Operating voltage Ub - 10…30 VDC
IP rating - IP67
Approval/Conformity - CE, UKCA, cULus, WEEE
