Excluding GST
M12 inductive sensor, 8mm, NPN normally open (NO), Non-Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 4-pin, 10...30 VDC

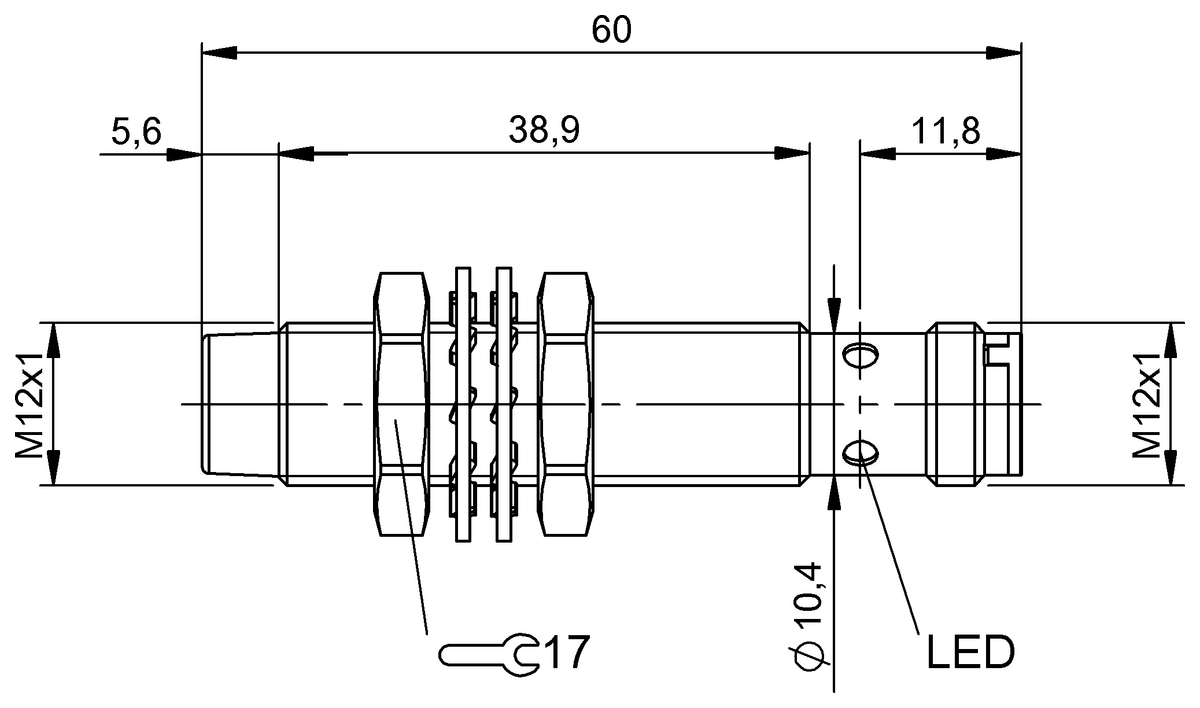

Dimension - Ø 12 x 60 mm
Style Housing - M12x1
Installation - non-flush
Range - 8 mm
Switching output - NPN normally open (NO)
Switching frequency - 1000 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection - Connector, M12x1-Male, 4-pin
Operating voltage Ub - 10...30 VDC
Ambient temperature -25...70 °C
IP rating - IP68
Approval/Conformity
CE
UKCA
cULus
WEEE
