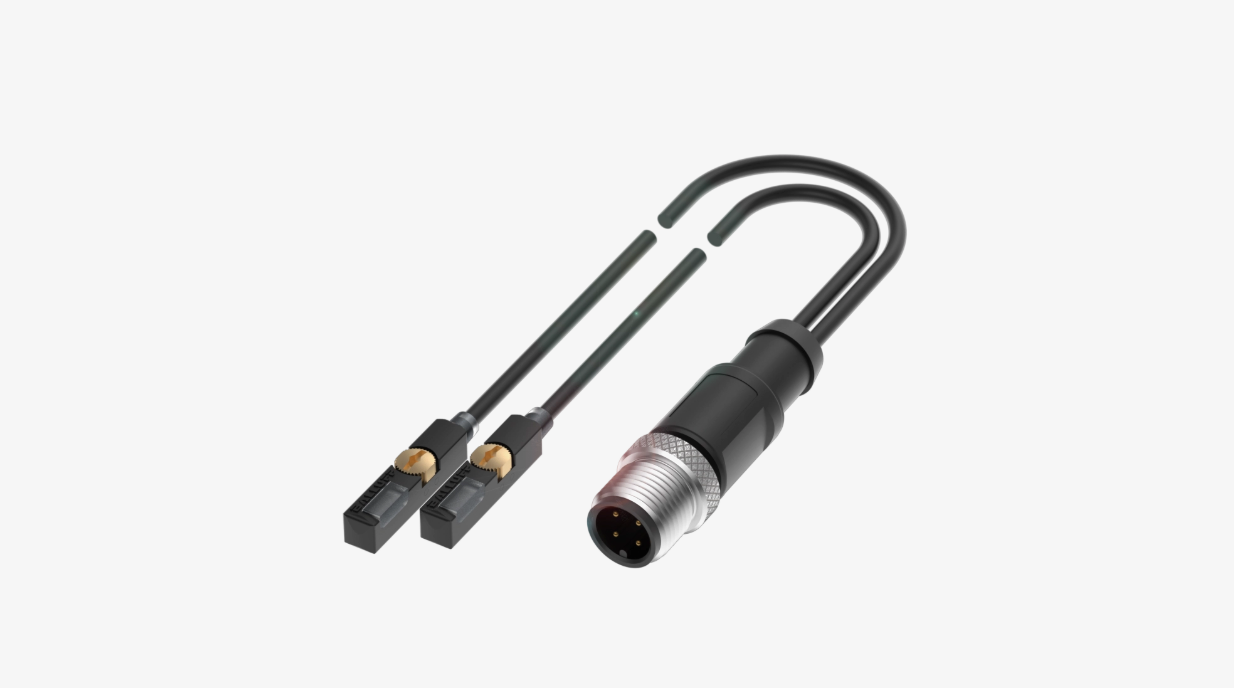

BMF 235K-PS-C-2A-SA95-S4-00,3
Slot type - T-slot
Dimension - 23.5 x 5 x 5.5 mm
Principle of operation - Magnetic field sensor
Connection - M12x1-Male, 4-pin, A-coded; Cable, PUR, 0.3 m

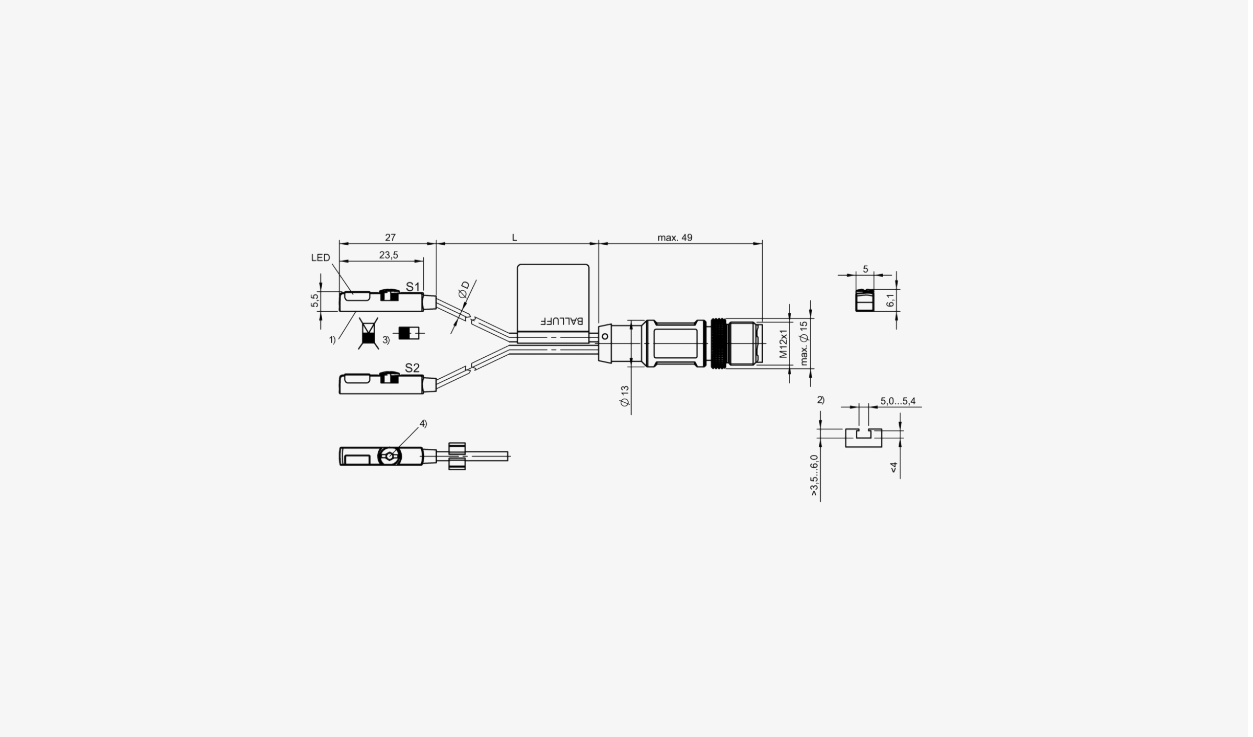

Application - Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Mounting part - can be installed in T-slot from above
Housing material - PA 12
Switching output - PNP normally open (NO)
Switching frequency - 3000 Hz
Operating voltage Ub - 10...30 VDC
Ambient temperature - -25...85 °C
IP rating - IP67
Approval/Conformity :CE, UKCA, cULus, WEEE
