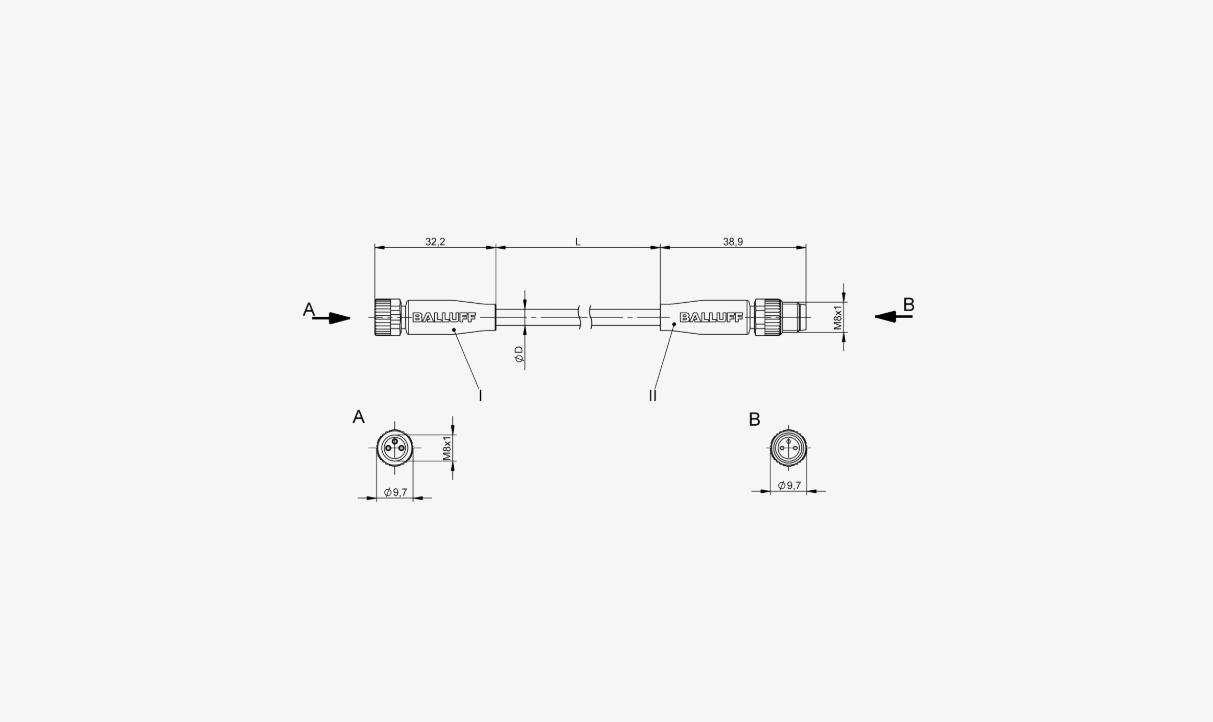

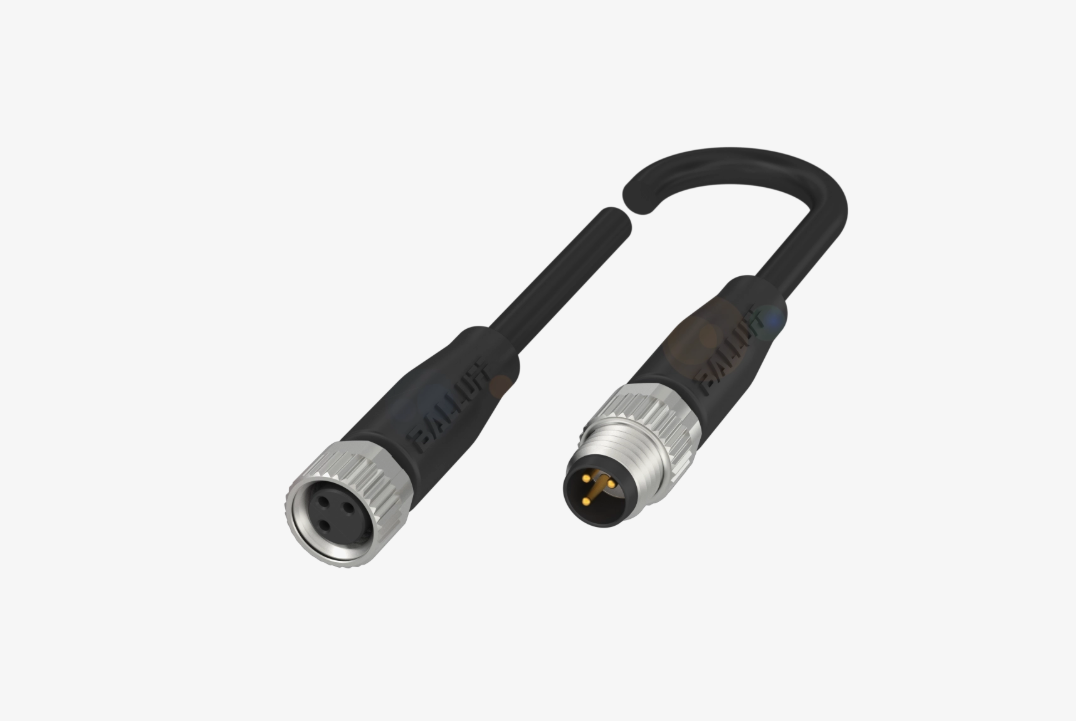

BCC M313-M313-30-300-PX0334-040
Connection 1 - M8x1-Female, straight, 3-pin, A-coded
Connection 2 - M8x1-Male, straight, 3-pin, A-coded
Cable - PUR black, 4 m, drag chain compatible
Number of conductors - 3
Cable temperature, fixed routing - -50...90 °C
Cable temperature, flexible routing - -25...90 °C
Operating voltage Ub - 60 VDC / 60 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP69K
Approval/Conformity :CE, cULus, UKCA, WEEE
