BES M12MG1-PSC60B-S04G

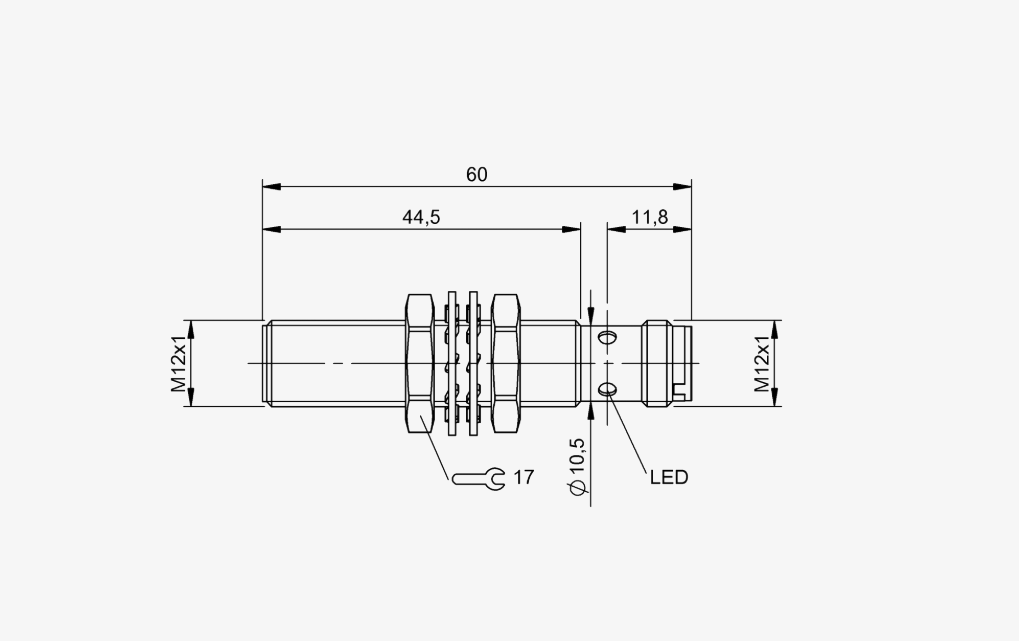

Dimension - Ø 12 x 60 mm
Style Housing - M12x1
Installation - quasi-flush
Range - 6 mm
Switching output - PNP normally open (NO)
Switching frequency - 1000 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection - Connector, M12x1-Male, 3-pin
Operating voltage Ub - 10...30 VDC
Ambient temperature - -25...85 °C
IP rating - IP68, according to BWN Pr 20
Approval/Conformity :CE, cULus, WEEE
