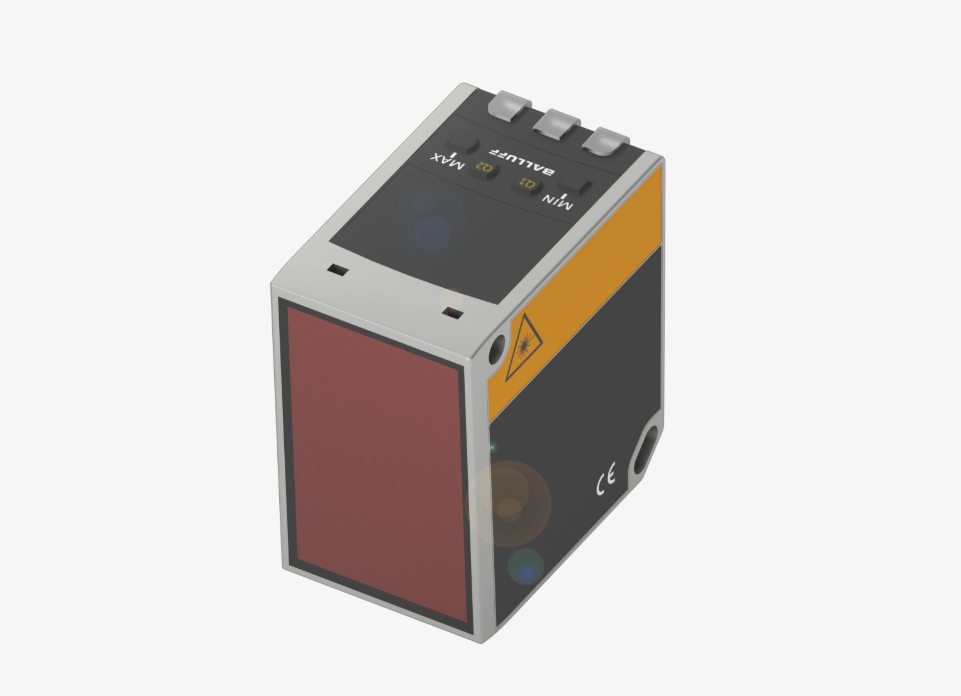

BOD 37M-LB01-S92
Series - 37M

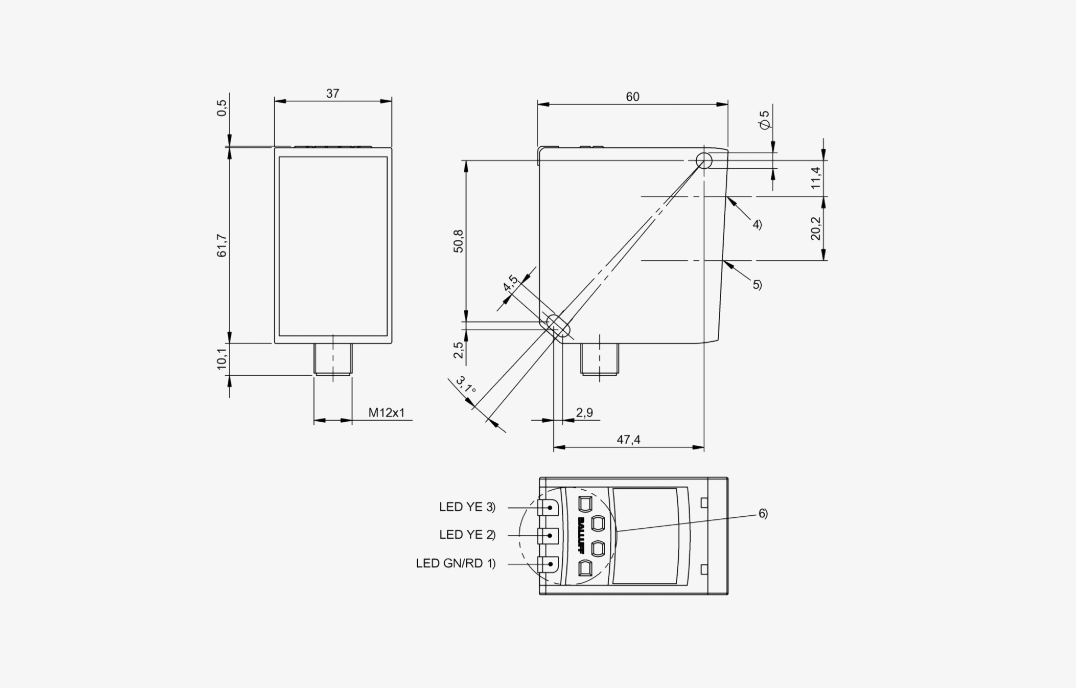

Dimension - 60 x 37 x 72.3 mm
Interface - Analog, current 4…20 mA linear rising/falling 2x PNP/NPN/push-pull NO/NC
Principle of operation - Photoelectric distance sensor
Principle of optical operation - Light time-of-flight
Beam characteristic - Collimated
Light type - Laser red light
Light spot size - Ø 15 mm at 8 m
Range - 200...10000 mm
Accuracy - ±0.1 % FS
Repeat accuracy - 0.01 % FS
Resolution - ≤ 1.0 mm
Connection - Connector, M12x1-Male, 5-pin
Housing material - Zinc, Die casting
Operating voltage Ub - 19.2...28.8 VDC
Approval/Conformity :CE, UKCA, cULus, WEEE
