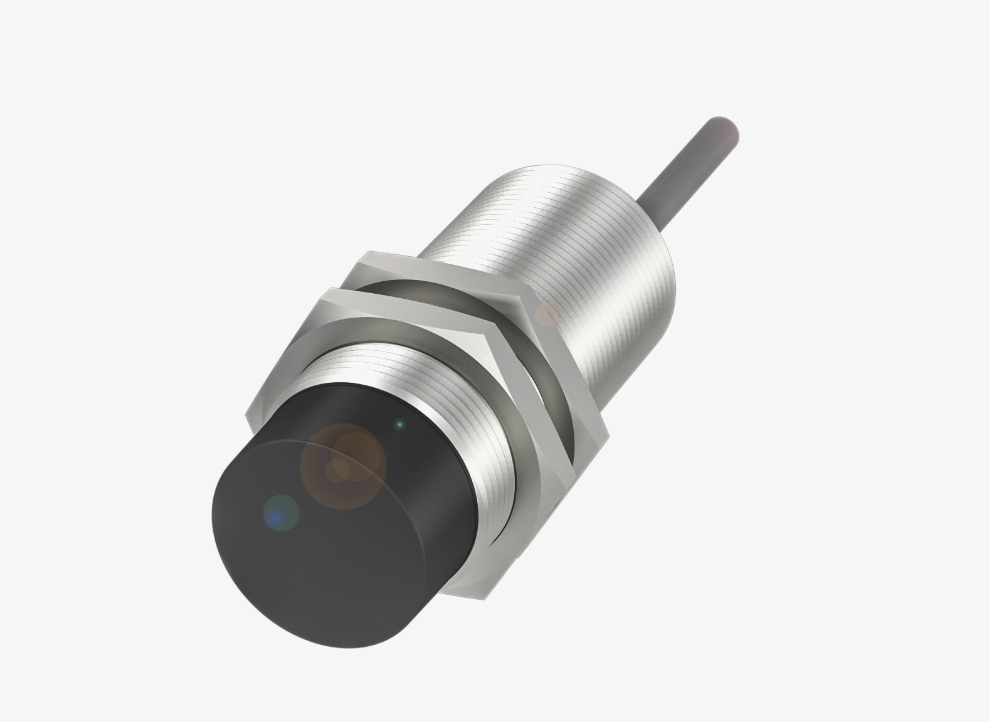

BES M30MM-PSC30F-BV02

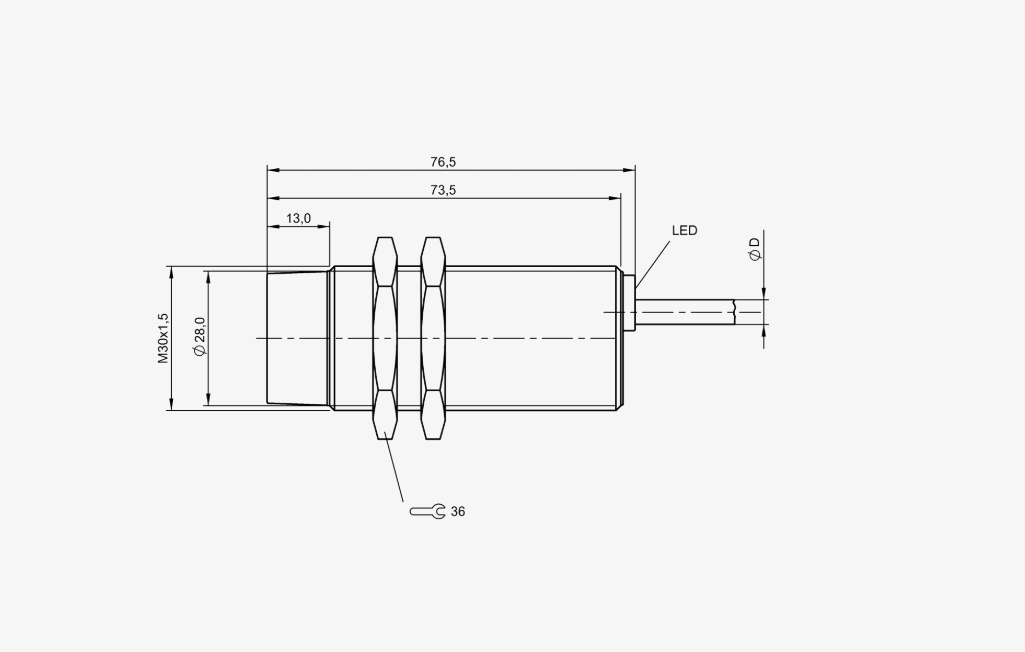

Dimension - Ø 30 x 76.5 mm
Style Housing - M30x1.5
Installation - non-flush
Range - 30 mm
Switching output - PNP normally open (NO)
Switching frequency - 300 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection - Cable, 2.00 m, PVC
Operating voltage Ub - 10...30 VDC
Ambient temperature - -25...70 °C
IP rating - IP67
Approval/Conformity :CE, UKCA, cULus, WEEE
