BES M18ME1-GNX80B-S04G-EEX

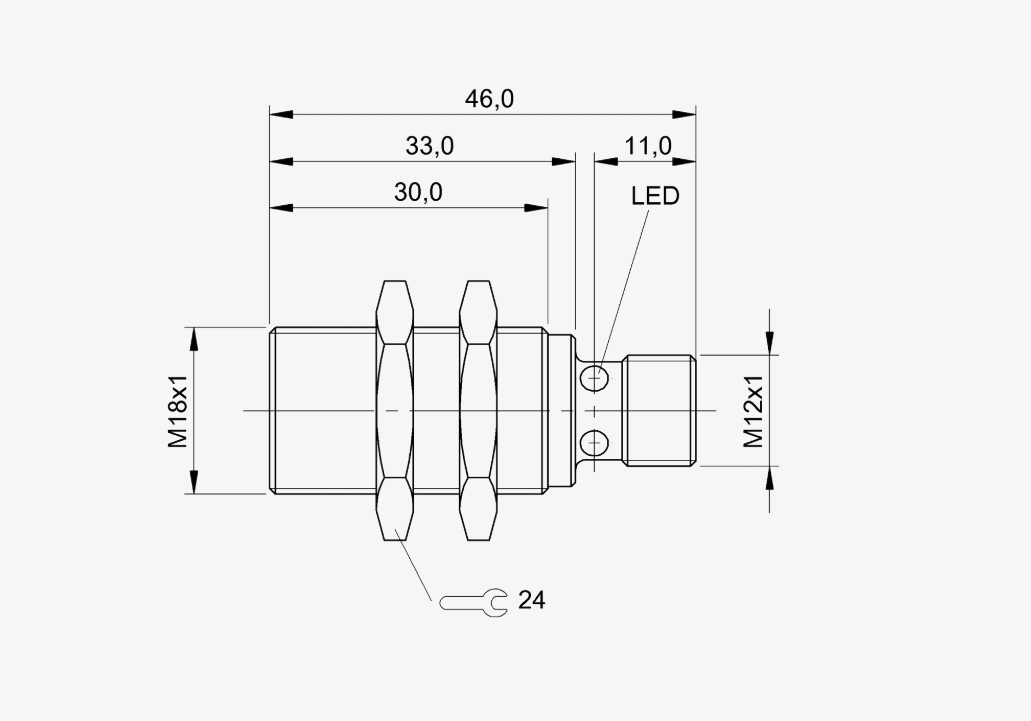

Dimension - Ø 18 x 46 mm
Style Housing - M18x1
Installation - for flush mounting
Range - 8 mm
Interface - NAMUR
Switching frequency - 400 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection - Connector, M12x1-Male, 4-pin
Operating voltage Ub - 7.7...9 VDC
Ambient temperature - -20...70 °C
Ex category - ATEX: 1D (EPL Da), 1G (EPL Ga), 2D (EPL Db), 2G (EPL Gb), 3D (EPL Dc), 3G (EPL Gc)
IP rating - IP67
Approval/Conformity :CE, ATEX, IECEx, FM, cCSAus, WEEE, CCC Ex, UKCA
