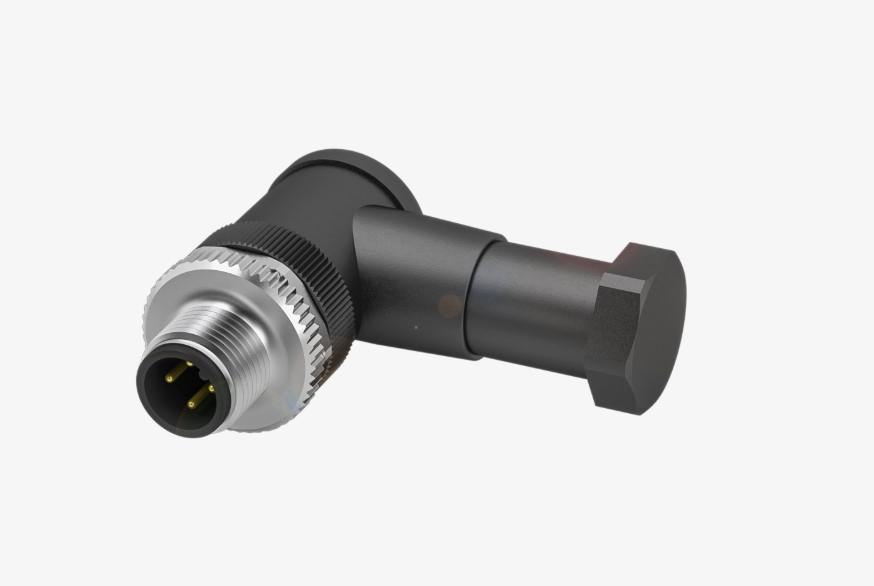

BCC M444-0000-2A-000-41X475-000

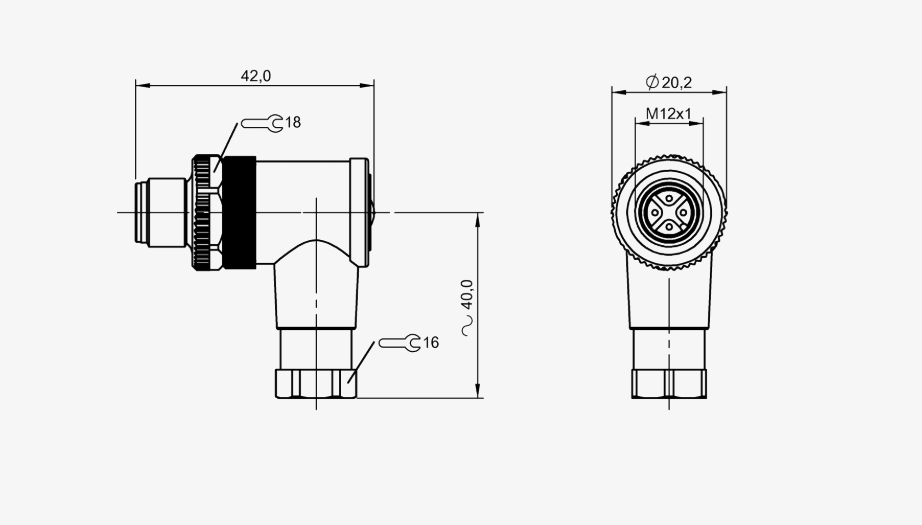

Connection - M12x1-Male, angled, 4-pin, A-coded
Number of connectable contacts - 4
Connection cross-section - 0.14...0.75 mm²
Type of wire mounting - Screw terminals
Cable diameter D - 4...6 mm
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67
Ambient temperature - -40...85 °C
Approval/Conformity :CE, cURus, WEEE
BCC M444-0000-2A-000-41X475-000
Connection - M12x1-Male, angled, 4-pin, A-coded
Number of connectable contacts - 4
Connection cross-section - 0.14...0.75 mm²
Type of wire mounting - Screw terminals
Cable diameter D - 4...6 mm
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67
Ambient temperature - -40...85 °C
Approval/Conformity :CE, cURus, WEEE
