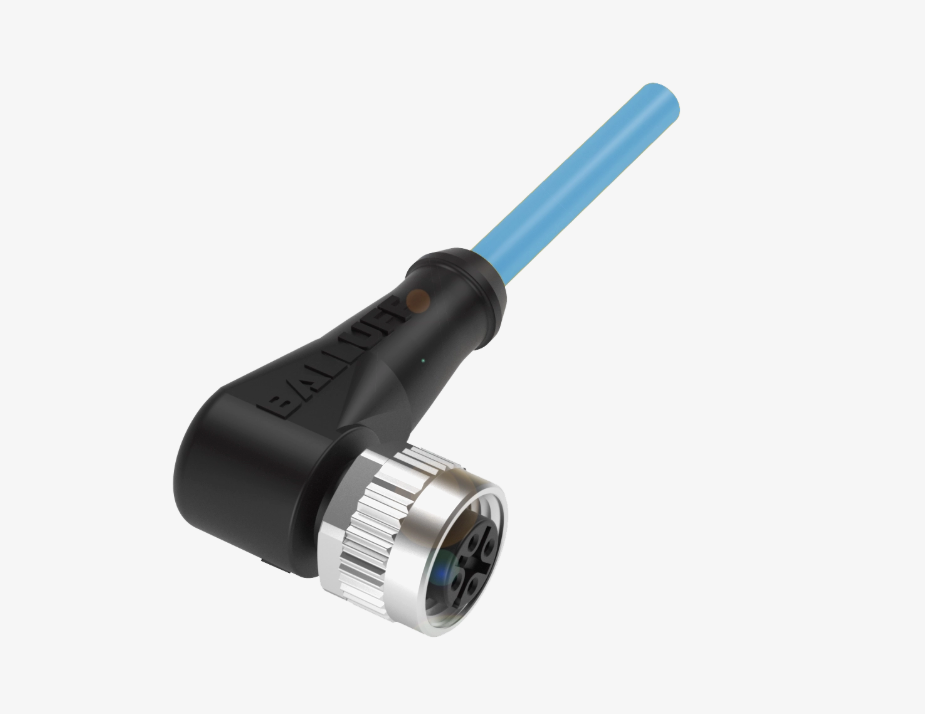

BCC M425-0000-1A-012-PX6234-150

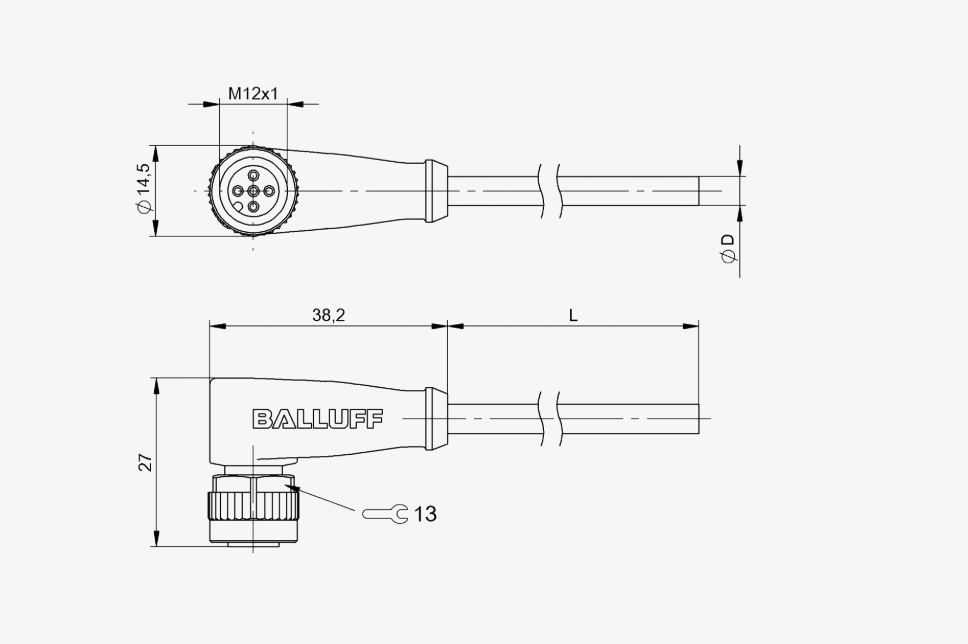

Connection - M12x1-Female, angled, 5-pin, A-coded
Interface - NAMUR
Cable - PUR Blue, 15 m
Number of conductors - 2
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -25...80 °C
Cable temperature, flexible routing - -5...80 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity :CE, cULus, WEEE
BCC M425-0000-1A-012-PX6234-150
Connection - M12x1-Female, angled, 5-pin, A-coded
Interface - NAMUR
Cable - PUR Blue, 15 m
Number of conductors - 2
Conductor cross-section - 0.34 mm²
Cable temperature, fixed routing - -25...80 °C
Cable temperature, flexible routing - -5...80 °C
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67, IP68, IP69K
Approval/Conformity :CE, cULus, WEEE
