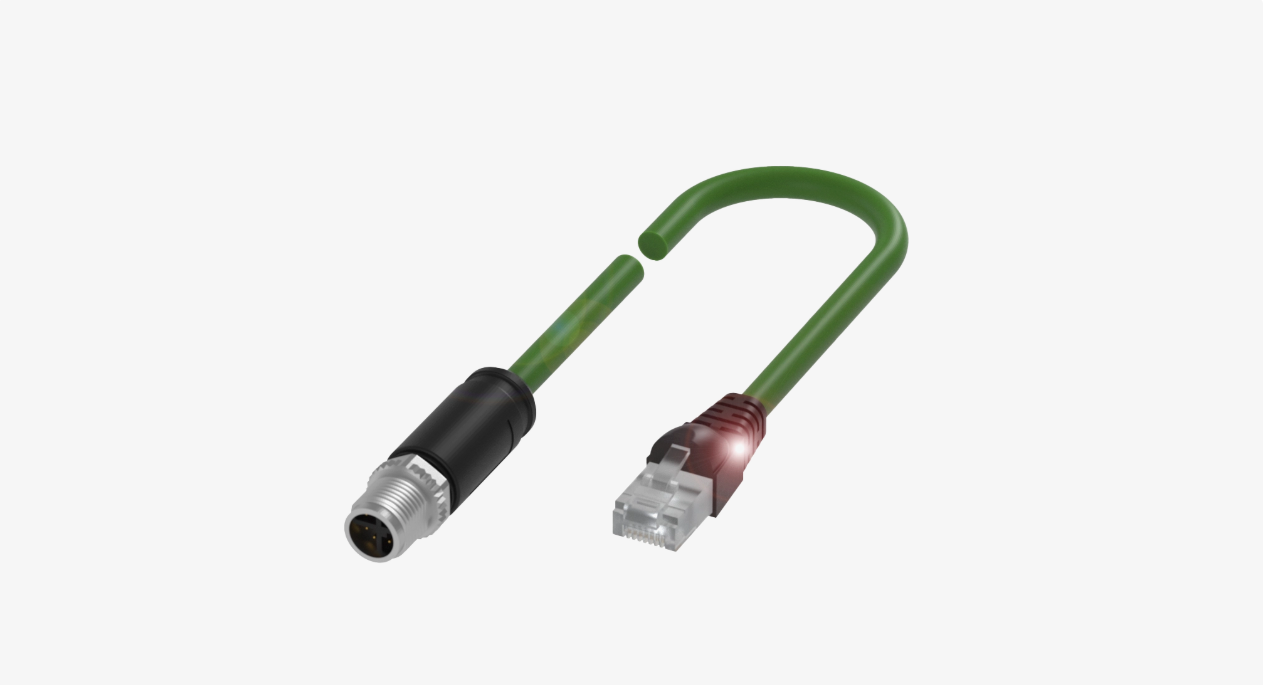

BCC M418-E818-8X0-723-PS58N9-100

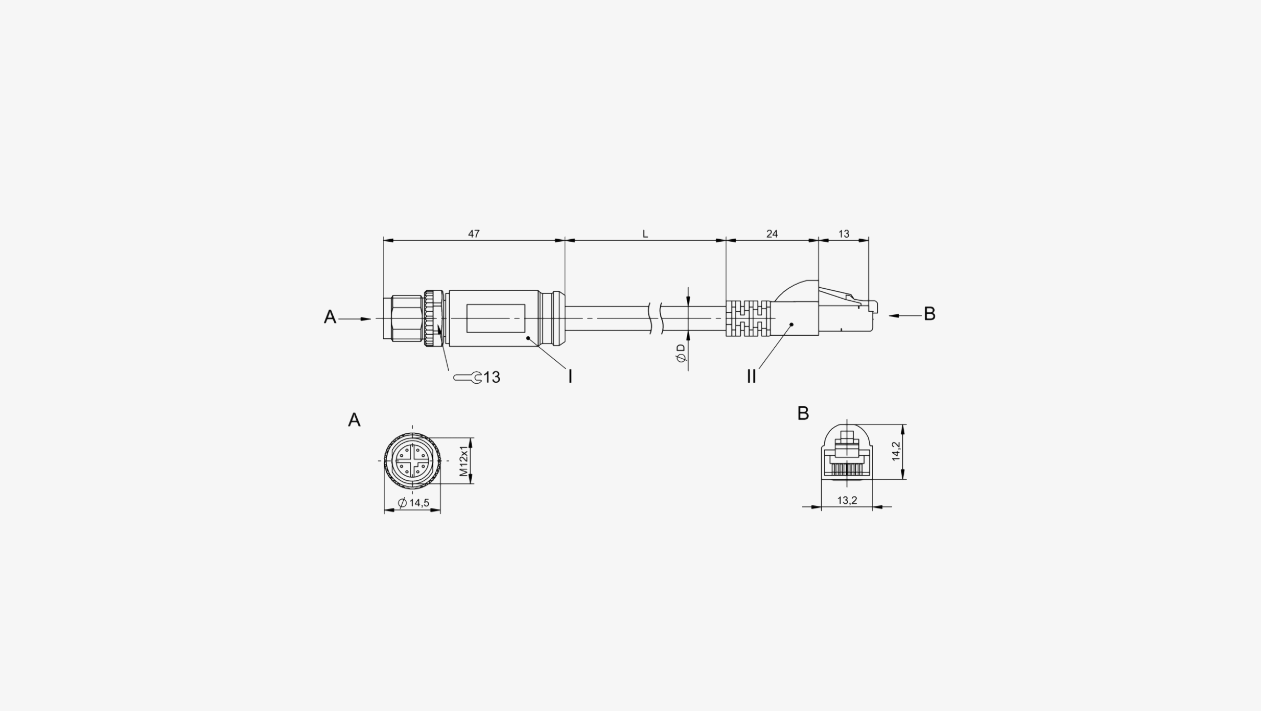

Connection 1 - M12x1-Male, straight, 8-pin, X-coded
Connection 2 - RJ45-Male, straight, 8-pin
Interface - Ethernet/IP
Cable - PUR Shielded Green, 10 m
Cable, note - Ethernet, CAT 7 by IEC 60332-1
Number of conductors - 8
Cable temperature, fixed routing - -40...80 °C
Cable temperature, flexible routing - -30...70 °C
Operating voltage Ub - 60 VDC / 50 VAC
Rated current (40 °C) - 0.5 A
IP rating - IP67 / IP20
Approval/Conformity :CE, cULus, WEEE
