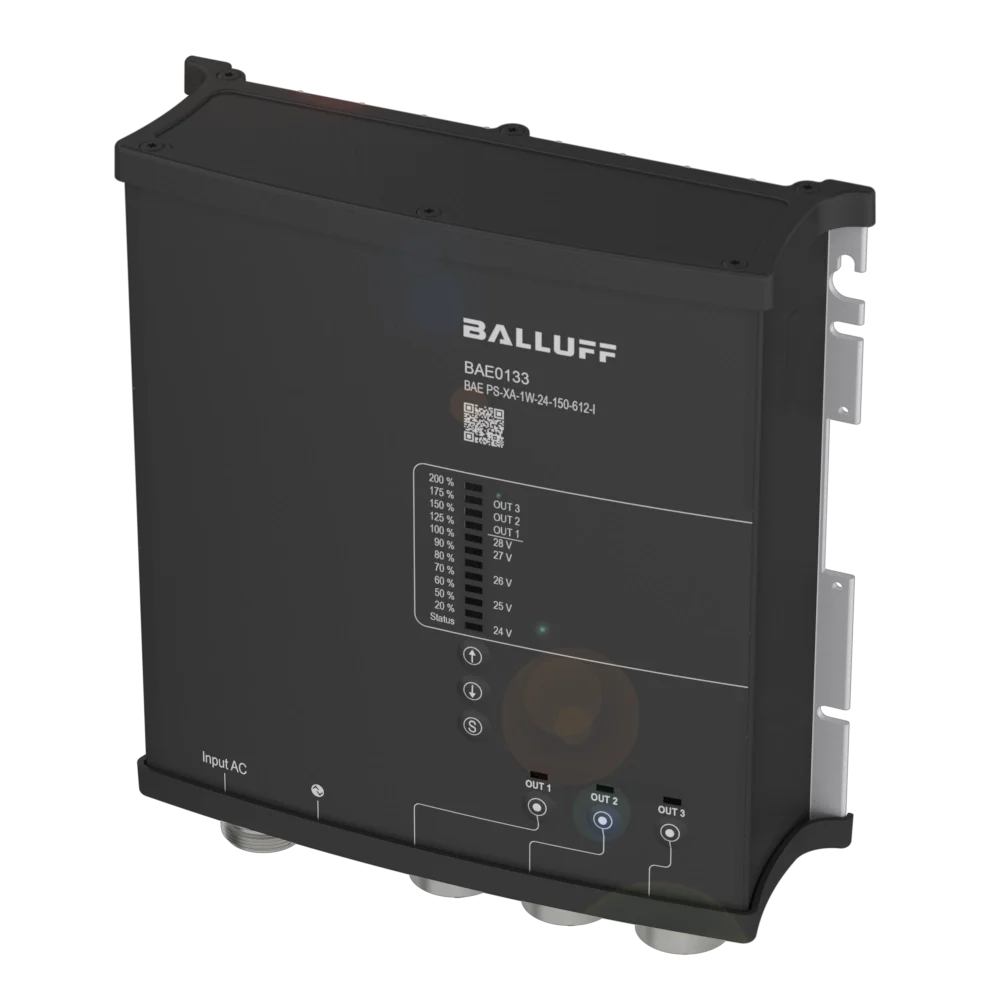

BAE PS-XA-1W-24-150-612-I
Output capacity (max.) - 300 W
Output voltage - 24...28 V DC
Rated output current - 12.5 A
Input voltage - 85...264 V AC
Connection (supply voltage IN) - 7/8"-Male, 3-pin
Connection (supply voltage OUT) - 7/8"x3-Female
Ambient temperature - -25...70 °C
IP rating - IP67/IP65

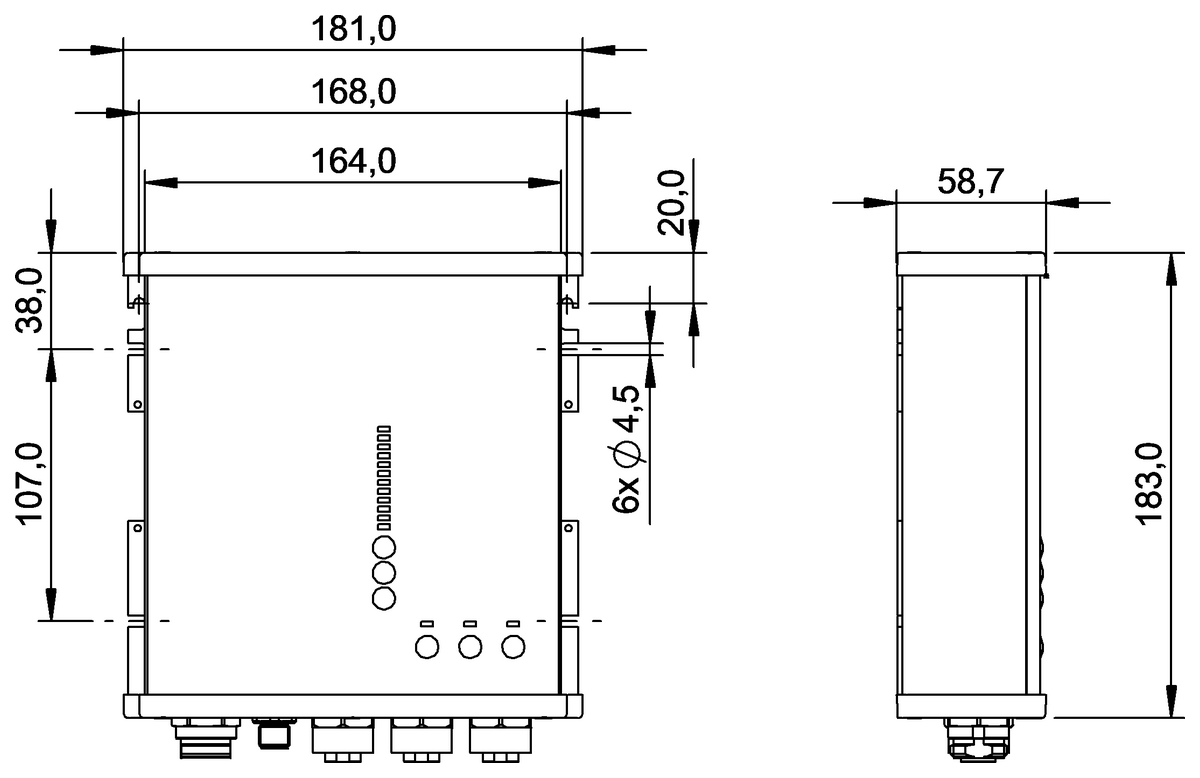

Dimension - 181 x 59 x 183 mm
Mounting part - Flange mounting
Housing material - Aluminium, PET
Approval/Conformity - CE, UKCA, cULus, WEEE
