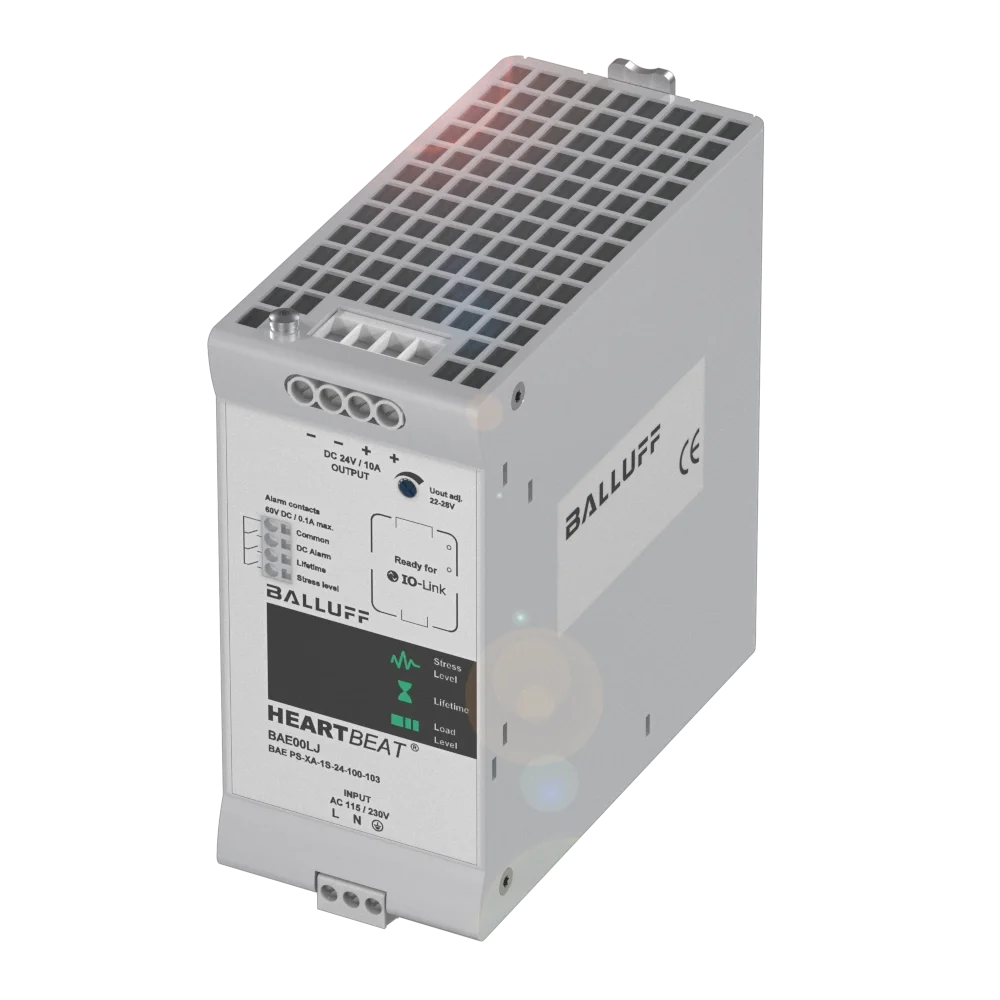

BAE PS-XA-1S-24-100-103

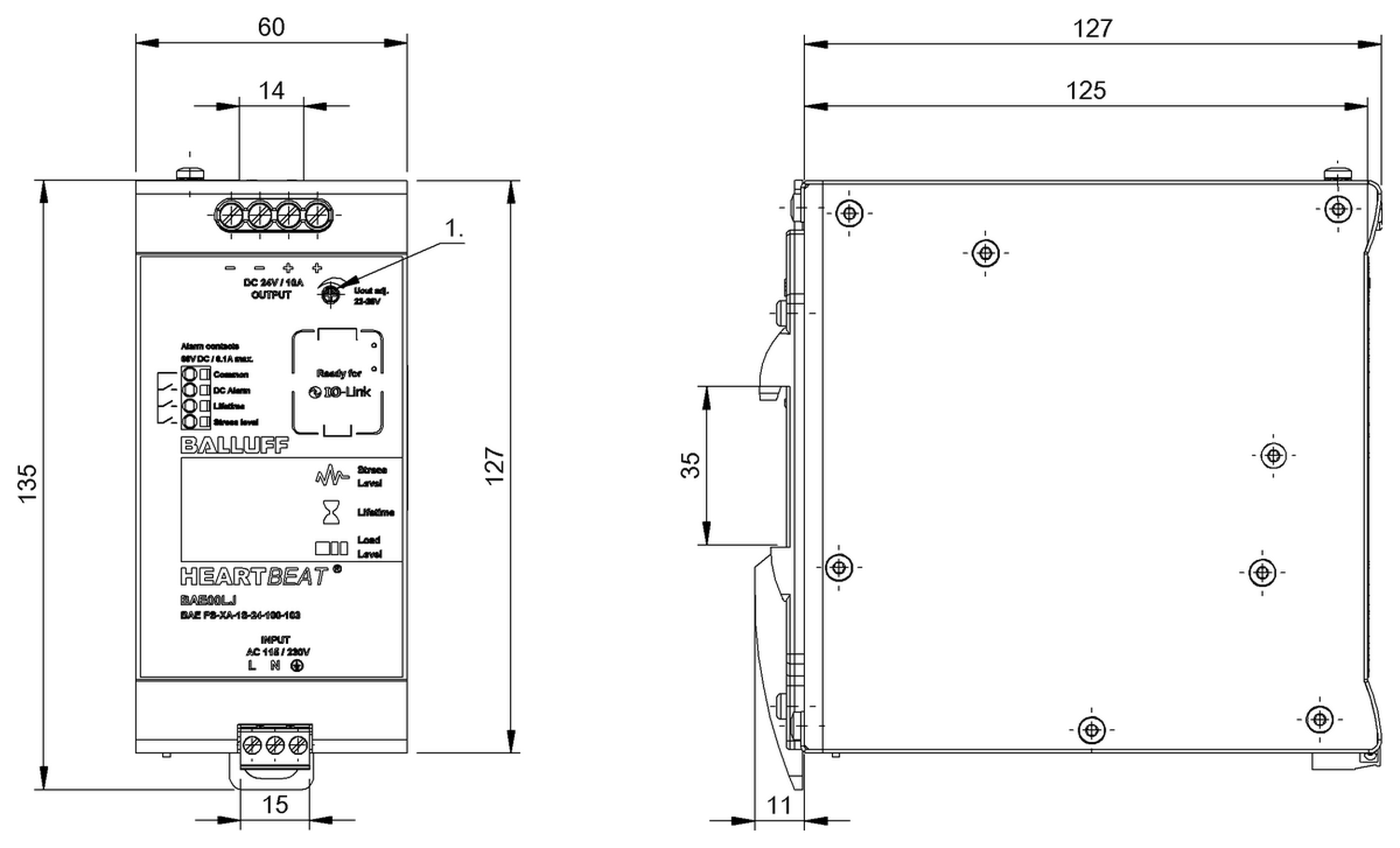

Dimension - 60 x 127 x 127 mm
Version - DIN rail
Mounting part - DIN rail mount
Housing material - Aluminium
Connection (supply voltage IN) - Terminal strip
Connection (supply voltage OUT) - Terminal strip
Input voltage - 115/230 V AC (automatic selection)
Rated output voltage (DC) - 24 V
Rated output current - 10 A
Output capacity (max.) - 240 W
Output current (max.) - 15 A (for max. 4 s, 1x/min.)
IP rating - IP20
Approval/Conformity - CE, cURus, cULus, WEEE
Ambient temperature - -25...70 °C
