BAE PS-XA-3Y-24-200-022

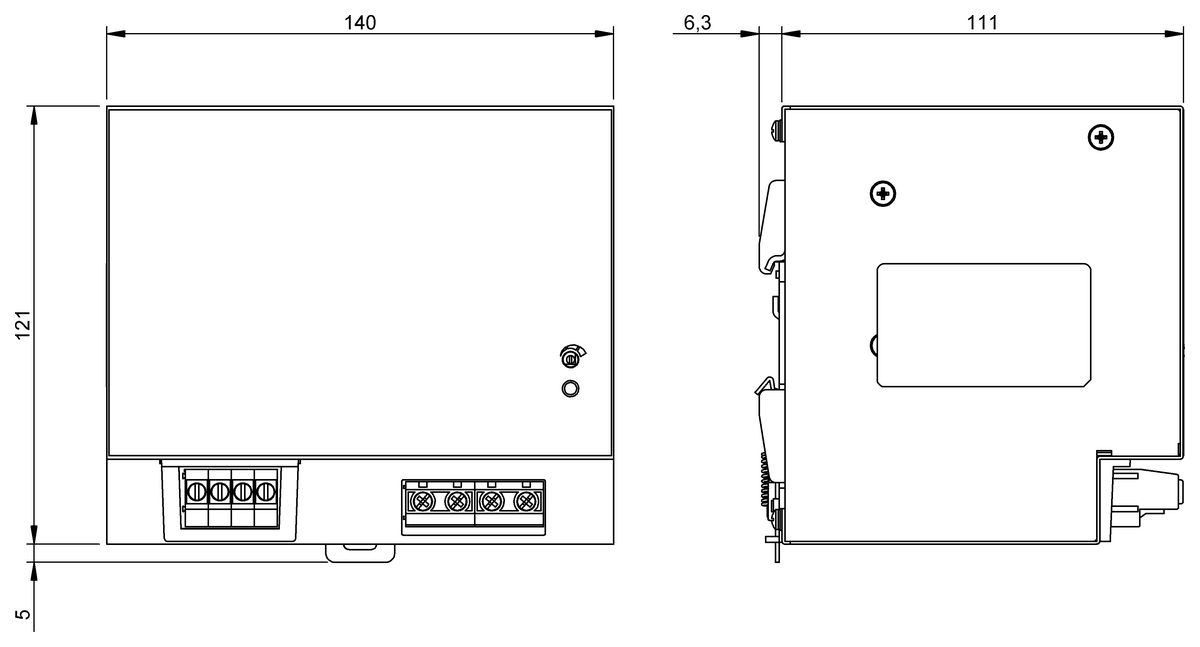

Dimension - 140 x 121 x 117.3 mm
Version - DIN rail
Mounting part - DIN rail mount
Housing material - Metal
Connection - Terminal, 0.25...4 mm²
Input voltage - 400…500 V AC 3-phase
Rated output voltage (DC) - 24 V
Rated output current - 20 A
IP rating - IP20
Approval/Conformity - CE, cURus, cULus, WEEE
Ambient temperature - -25...80 °C
