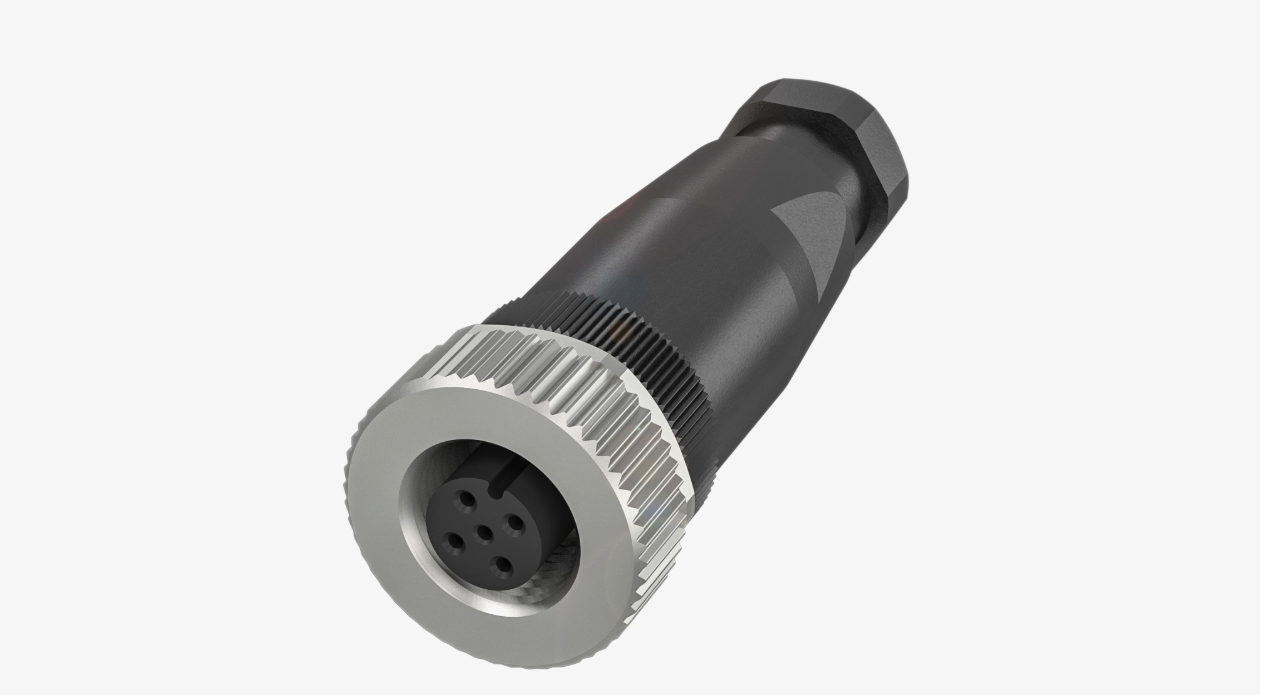

BCC M435-0000-1A-000-51X475-000
Connection - M12x1-Female, straight, 5-pin, A-coded
Number of connectable contacts - 4
Connection cross-section - 0.14...0.75 mm²
Type of wire mounting - Screw terminals
Cable diameter D - 6...8 mm
Operating voltage Ub - 250 VDC / 250 VAC
Rated current (40 °C) - 4.0 A
IP rating - IP67
Ambient temperature - -40...85 °C
Approval/Conformity :CE, cURus, WEEE
