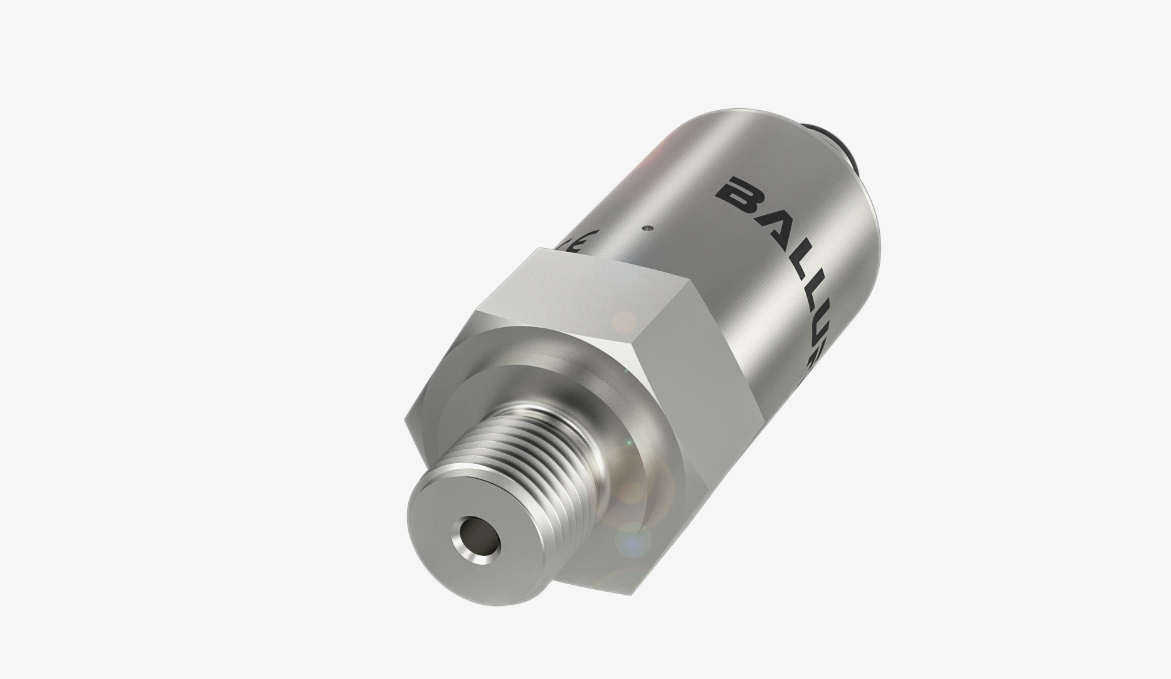

BSP B010-DV004-A04A1A-S4
Measuring range - 0...10 bar
Accuracy - ±0.5 % FSO BFSL
Overload pressure - 20 bar
Burst pressure - 35 bar
Operating voltage Ub - 14...30 VDC
Analog output - Analog, voltage 0…10 V
Connection - Connector, M12x1-Male, 4-pin
Process connection - G 1/4" (DIN 3852)
Process connection material - 1.4301 stainless steel
Gasket, material - FKM
Housing material - 1.4301 stainless steel
Media temperature - -40...125 °C
Ambient temperature - -25...85 °C
IP rating - IP67
Approval/Conformity :CE, UKCA, cULus, WEEE
