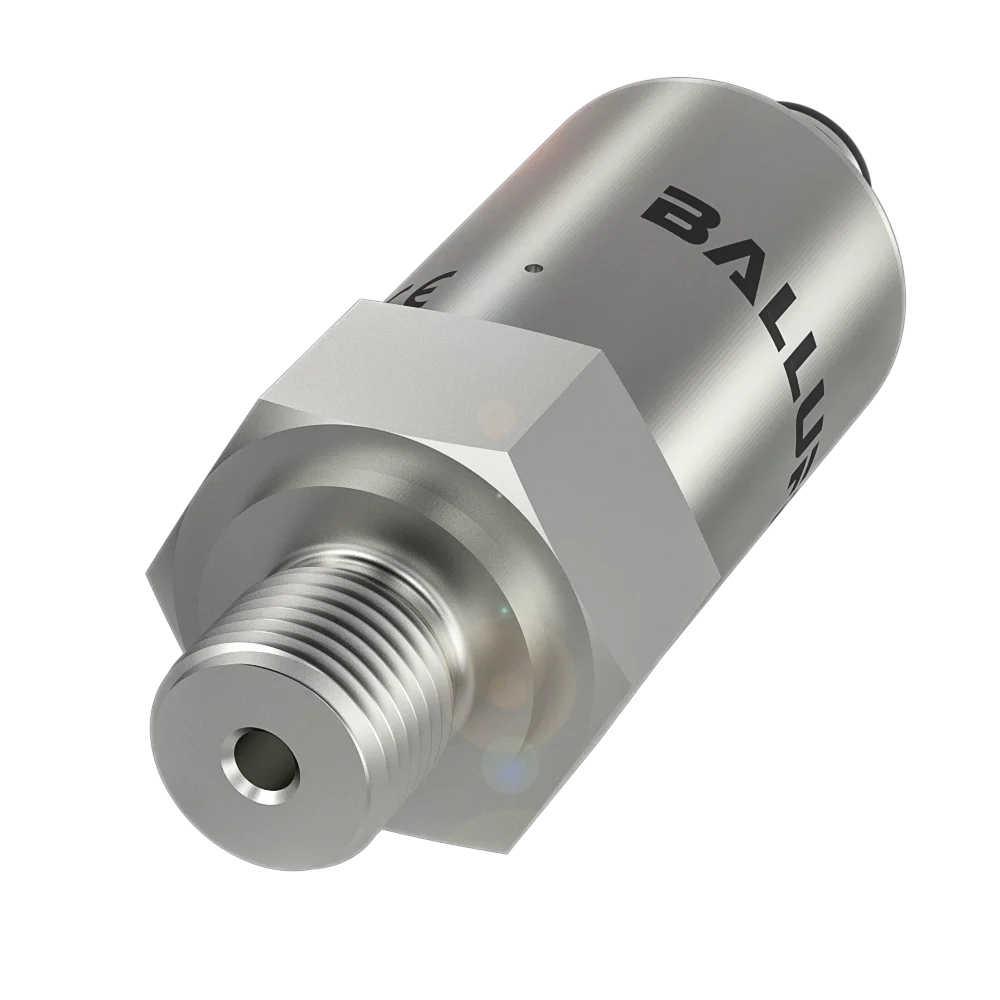

Balluff - BSP00H1 - 0-10 bar pressure transmitter, analog current output 4-20mA
Measuring range - 0...10 bar
Accuracy - ±0.5 % FSO BFSL
Overload pressure - 20 bar
Burst pressure - 35 bar
Operating voltage Ub - 8...32 VDC
Analog output - Analog, current 4…20 mA
Connection - Connector, M12x1-Male, 4-pin
Process connection - G 1/4" (DIN 3852)
Process connection material - 1.4301 stainless steel
Gasket, material - FKM
Housing material - 1.4301 stainless steel
Media temperature - -40...125 °C
Ambient temperature - -25...85 °C
IP rating - IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
Expected Delivery 7-10 days
Measuring range - 0...10 bar
Accuracy - ±0.5 % FSO BFSL
Overload pressure - 20 bar
Burst pressure - 35 bar
Operating voltage Ub - 14...30 VDC
Analog output - Analog, voltage 0…10 V
Connection - Connector, M12x1-Male, 4-pin
Process connection - G 1/4" (DIN 3852)
Process connection material - 1.4301 stainless steel
Gasket, material - FKM
Housing material - 1.4301 stainless steel
Media temperature - -40...125 °C
Ambient temperature - -25...85 °C
IP rating - IP67
Approval/Conformity :CE, UKCA, cULus, WEEE
Balluff - BSP00F3 - 0-400 bar pressure transmitter, analog current output 4-20mA
Measuring range - 0...400 bar
Accuracy - ±0.5 % FSO BFSL
Overload pressure - 1200 bar
Burst pressure - 1500 bar
Operating voltage Ub - 8...32 VDC
Analog output - Analog, current 4…20 mA
Connection - Connector, M12x1-Male, 4-pin
Process connection - G 1/4" (DIN 3852)
Process connection material - 1.4301 stainless steel
Gasket, material - without, welded
Housing material - 1.4301 stainless steel
Media temperature - -40...125 °C
Ambient temperature - -25...85 °C
IP rating - IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
Expected Delivery 7-10 days
