Pressure sensor with displays

Balluff - BSP00Y4 - 0-10 Bar pressure sensor with display

$629.70

Balluff - BSP00Y4 - 0-10 Bar pressure sensor with display.

BSP B010-EV009-P00S2B-S4

Measuring range - 0...10 bar

Accuracy - ±0.5 % FSO BFSL

Overload pressure - 20 bar

Burst pressure - 35 bar

Operating voltage Ub - 18...30 VDC

Interface - IO-Link 1.1

Analog output - Analog, voltage/Analog, current selectable 4…20 mA/0…10 V

Switching output - 2x PNP/NPN NO/NC selectable

Connection - Connector, M12x1-Male, 4-pin

Process connection - G 1/4" (DIN 3852)

Process connection material - 1.4301 stainless steel

Gasket, material - FKM

Housing material - 1.4301 stainless steel , PE, High-density polyethylene

Media temperature - -40...125 °C

Ambient temperature - -40...85 °C

IP rating - IP67, when threaded in

Approval/Conformity

CE
UKCA
cULus
WEEE

Expected delivery 7-10 working days.

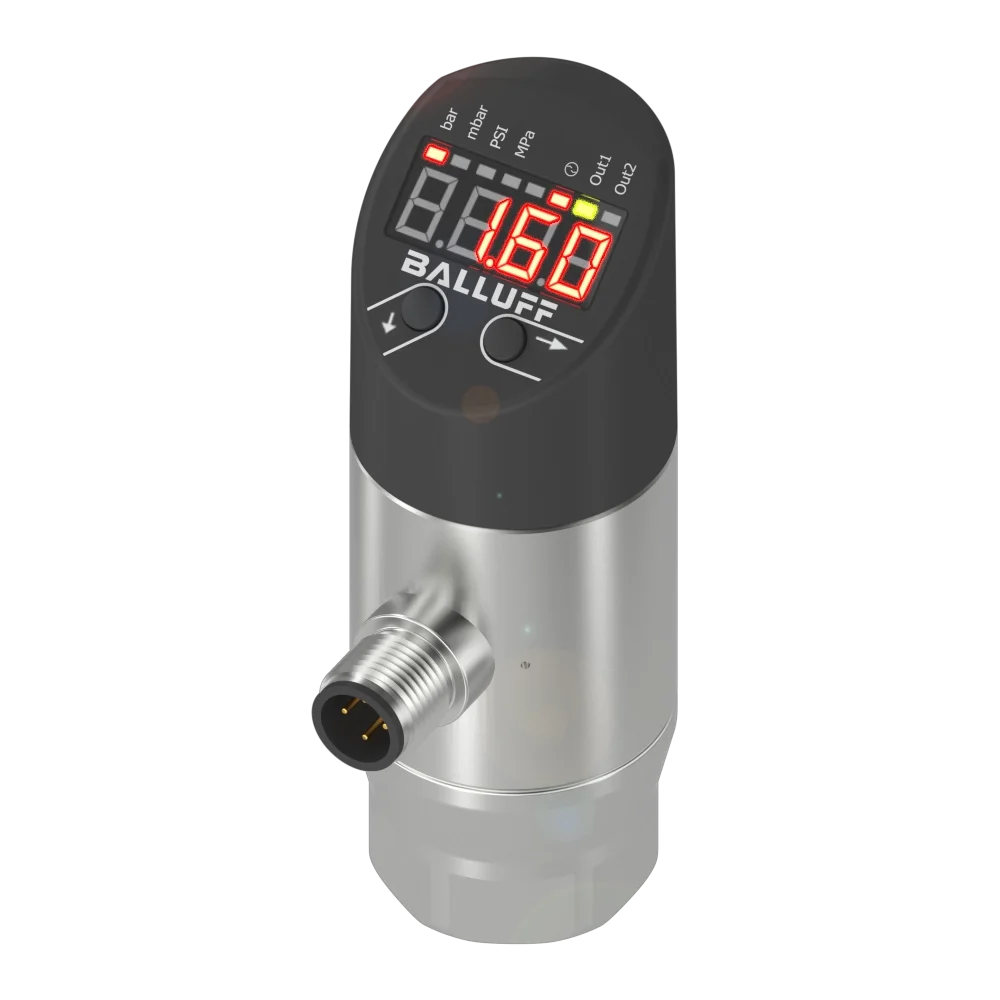

Balluff - BSP00Y8- 0-100 Bar Pressure sensors with display

$759.42

BSP B100-EV009-P00S2B-S4

Measuring range - 0...100 bar
Accuracy - ±0.5 % FSO BFSL
Overload pressure - 200 bar
Burst pressure - 300 bar
Operating voltage Ub - 18...30 VDC
Interface - IO-Link 1.1
Analog output - Analog, voltage / Analog, current selectable 4…20 mA / 0…10 V
Switching output - 2x PNP/NPN NO/NC selectable
Connection - Connector, M12x1-Male, 4-pin
Process connection - G 1/4" (DIN 3852)
Process connection material - 1.4301 stainless steel
Gasket, material - FKM
Housing material - 1.4301 stainless steel, PE, High-density polyethylene
Media temperature - -40...125 °C
Ambient temperature - -40...85 °C
IP rating - IP67, when threaded in
Approval/Conformity :CE, UKCA, cULus, WEEE

Balluff - BSP00YH - 0-400 Bar pressure sensor with display

$686.55

Balluff - BSP00YH - 0-400 Bar pressure sensor with display.

BSP B400-EV009-P00S2B-S4

Measuring range - 0...400 bar
